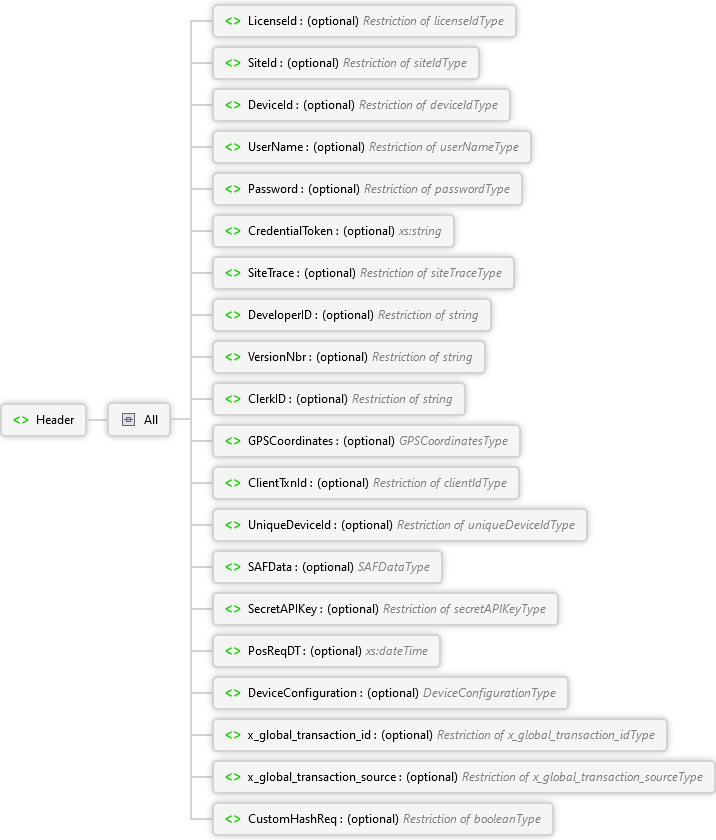

<xs:element name="Header" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">The header includes credentials and transaction tracking information. These fields are included as optional in the schema to allow different options for providing credentials.</p>
      <p xmlns="http://Hps.Exchange.PosGateway" />
      <p xmlns="http://Hps.Exchange.PosGateway">
        <strong>Note:</strong> One of the following combinations is required:
                                            <ul><li>License, Site, Device, Username, and Password</li>
                                                or
                                                <li>Secret API key</li></ul></p>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:all>
      <xs:element name="LicenseId" type="licenseIdType" default="0" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Identifier assigned by Heartland during the boarding process; used for chaining sites together</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SiteId" type="siteIdType" default="0" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Identifier assigned by Heartland during the boarding process; tied to a specific merchant ID</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DeviceId" type="deviceIdType" default="0" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Identifier assigned by Heartland during the boarding process</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="UserName" type="userNameType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">User name assigned by Heartland during the boarding process</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="Password" type="passwordType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Password for the associated user; a temp password will be provided during the boarding process but must be altered before it is used for transaction processing</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="CredentialToken" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">The credential token is used to indicate a user session. Currently, this option is only available to internal Heartland applications and should not be used by integrators.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SiteTrace" type="siteTraceType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">This element can be used by the client to provide a value that can be searched for later. Clients are free to provide any value that is useful to them but it must not contain sensitive data. This will also be echoed in the response if present.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DeveloperID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Identifier assigned by Heartland during the certification process; this field is optional to support legacy integrations, but all new integrations require this value.</p>
          </xs:documentation>
        </xs:annotation>
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:maxLength value="6" />
            <xs:minLength value="6" />
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="VersionNbr" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Software version number assigned by Heartland during the certification process; this field is optional to support legacy integrations, but all new integrations require this value.</p>
          </xs:documentation>
        </xs:annotation>
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:maxLength value="4" />
            <xs:minLength value="4" />
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="ClerkID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Identifier assigned by the merchant or client to the clerk running this transaction; this must not contain sensitive data</p>
          </xs:documentation>
        </xs:annotation>
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:maxLength value="50" />
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="GPSCoordinates" type="GPSCoordinatesType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">GPS coordinates indicating the location of the source of the transaction</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ClientTxnId" type="clientIdType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">A client-generated transaction id. This must be unique for this device. If present, it will be attached to this transaction and echoed in the response. This allows the client to run a timeout reversal against a unique transaction in the event that a response is never received. When a response is received, the client will receive a gateway-generated transaction id.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="UniqueDeviceId" type="uniqueDeviceIdType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">A client-supplied device identifier to be sent when transactions for multiple devices are aggregated in the same batch. If present, the field will be sent to the issuer on authorization and settlement requests and echoed in the response header.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SAFData" type="SAFDataType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">SAFData indicating if a transaction that was processed and initiated in "store and forward" (SAF) mode.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SecretAPIKey" type="secretAPIKeyType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">API key that can be used in place of license, site, device, username, and password. An API will be tied to a specific environment (i.e. certification or production).</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note: The use of SecretAPIKey is restricted.</strong>
            </p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="PosReqDT" type="xs:dateTime" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">POS request date and time. Required for Interac processing.</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong>This field is required for Canadian merchants.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DeviceConfiguration" type="DeviceConfigurationType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">
                                                        Device capabilities and/or attributes needed by a Host processor that are not otherwise able to be determined.
                                                        Please refer to the Developer Guide for further details as this data may be required for certain Host processors..
                                                    </p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="x_global_transaction_id" type="x_global_transaction_idType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">A client-generated transaction id used for certain API integrations.  If present, it will be attached to this transaction and echoed in the response.</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This is for internal use only.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="x_global_transaction_source" type="x_global_transaction_sourceType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">A client-generated transaction id used for certain API integrations.  If present, it will be attached to this transaction and echoed in the response.</p>
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This is for internal use only.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="CustomHashReq" type="booleanType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Indicates whether to return a hashed value of the card number using a custom salt value.</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This field has been deprecated</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:all>
  </xs:complexType>
</xs:element>
