PosGateway Schema
Order Element
PosGateway Schema > BNPLCreateOrderReqBlock1Type Complex Type : Order Element
Namespace http://Hps.Exchange.PosGateway

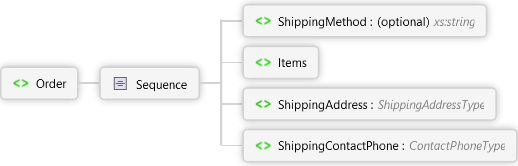

Diagram
ShippingContactPhone Element ShippingAddress Element Items Element ShippingMethod Element Sequence Order Element
Overview
Order
Sequence
ShippingMethod optional xs:string
Items
Sequence 0..∞
OrderItemDetails BNPLOrderItemDetailType Complex Type
All
Reference xs:string
Label optional xs:string
Description xs:string
AdditionalDescription optional xs:string
Quantity Restriction of xs:int

Item Quantity

UnitAmt amtTypeGlobal Simple Type

Unit Amount

NetUnitAmt amtTypeGlobal Simple Type
TotalAmt optional amtTypeGlobal Simple Type
TaxAmt optional amtTypeGlobal Simple Type

Tax Amount

DiscountAmt optional amtTypeGlobal Simple Type
TaxPercentage optional Restriction of xs:decimal

Tax Percentage

GiftCardCurrency optional Restriction of xs:string
Type optional Restriction of xs:string

Item Image Url

ImageUrl Restriction of xs:string

Item Image Url

ProductUrl Restriction of xs:string

Item Product Url

ShippingAddress ShippingAddressType Complex Type
Sequence
FirstName xs:string
LastName xs:string
Name xs:string
Line1 xs:string
Line2 xs:string
City xs:string
PostalCode xs:string
State xs:string
Country xs:string
AddressType xs:string
ShippingContactPhone ContactPhoneType Complex Type
Sequence
CountryCode xs:string
PhoneNumber xs:string
Source
<xs:element name="Order" minOccurs="1" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ShippingMethod" type="xs:string" minOccurs="0" />
      <xs:element name="Items" minOccurs="1">
        <xs:complexType>
          <xs:sequence minOccurs="0" maxOccurs="unbounded">
            <xs:element name="OrderItemDetails" type="BNPLOrderItemDetailType" />
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="ShippingAddress" type="ShippingAddressType" minOccurs="1" />
      <xs:element name="ShippingContactPhone" type="ContactPhoneType" minOccurs="1" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
BNPLCreateOrderReqBlock1Type Complex Type | PosGateway Schema
