CheckDataType Complex Type

Namespace

http://Hps.Exchange.PosGateway

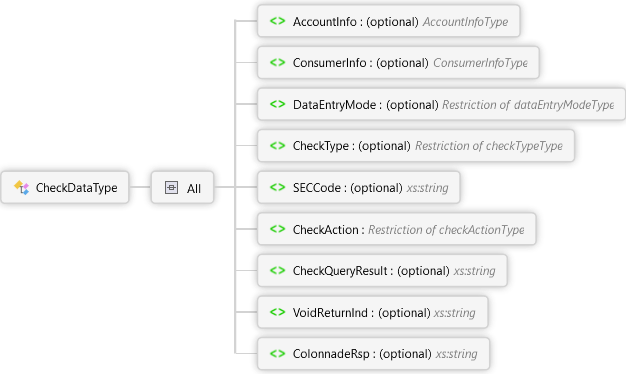

Diagram

Overview

CheckDataType

All

AccountInfo optional AccountInfoType Complex Type

Account information

All

RoutingNumber optional xs:string

Check routing number; manually entered or parsed from MICR data.

AccountNumber optional Restriction of xs:string

Check account number; manually entered or parsed from MICR data.

CheckNumber optional xs:string

The physical check number; manually entered or parsed from MICR data.

MICRData optional Restriction of xs:string

Magnetic ink character recognition (MICR) data obtained from a check reader.

AccountType optional accountTypeType Simple Type

Indicates the type of account provided; see the associated Type enumerations for specific values supported.

Note: If processing with Colonnade, AccountType must be specified.

ConsumerInfo optional ConsumerInfoType Complex Type

Consumer information

All

FirstName optional xs:string

Consumer first name

LastName optional xs:string

Consumer last name

CheckName optional xs:string

Business name on check.

Note: If processing with Colonnade, this field is required.

Note: This sets the COMPANY_NAME sent to GETI.

Address1 optional xs:string

Consumer address line 1

Address2 optional xs:string

Consumer address line 2

City optional xs:string

Consumer city

State optional xs:string

Consumer state

Zip optional xs:string

Consumer zip code

PhoneNumber optional xs:string

Consumer phone number

EmailAddress optional xs:string

Consumer email address

Note: This was for Transmodus only and is no longer used.

DLState optional xs:string

Consumer driver's license state

Note: This field may be required by GETI based on the terminal configuration.

DLNumber optional Restriction of xs:string

Consumer driver's license number

Note: This field may be required by GETI based on the terminal configuration.

CourtesyCard optional Restriction of xs:string

Consumer courtesy card number

IdentityInfo optional IdentityInfoType Complex Type

Consumer identity information

All

SSNL4 optional Restriction of xs:string

Last four digits of the consumer social security number

Note: This field may be required by GETI based on the terminal configuration.

DOBYear optional xs:string

Consumer year of birth

Note: This field may be required by GETI based on the terminal configuration.

DataEntryMode optional dataEntryModeType Simple Type

CheckType optional checkTypeType Simple Type

SECCode optional xs:string

CheckAction checkActionType Simple Type

Used By

CheckData Element

Source

<xs:complexType name="CheckDataType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="AccountInfo" type="AccountInfoType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Account information</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ConsumerInfo" type="ConsumerInfoType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Consumer information</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DataEntryMode" type="dataEntryModeType" minOccurs="0" />
    <xs:element name="CheckType" type="checkTypeType" minOccurs="0" />
    <xs:element name="SECCode" type="xs:string" minOccurs="0" />
    <xs:element name="CheckAction" type="checkActionType" />
  </xs:all>
</xs:complexType>
