EMVData Element

When processing with an EMV capable client, this element may need to be provided. It consists of certain online authentication data or the reason for not utilizing the EMV capabilities. EMV tag data should be sent in the separate TagData field.

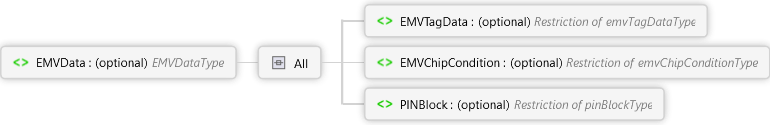

EMVDataType Complex Type

EMVData optional EMVDataType Complex Type

When processing with an EMV capable client, this element may need to be provided. It consists of certain online authentication data or the reason for not utilizing the EMV capabilities. EMV tag data should be sent in the separate TagData field.

All

EMVTagData optional emvTagDataType Simple Type

EMV tag data in TLV format.

Note: This field has been obsoleted.See the TagData field for the alternative.

EMVChipCondition optional emvChipConditionType Simple Type

This must be provided when the POS was not able to successfully communicate to the chip card and was required to fall back to a magnetic stripe read on an EMV capable terminal.

The values can indicate multiple factors:

The EMV chip read failed
Did the previous attempt fail

See enumerations for specific values supported

PINBlock optional pinBlockType Simple Type

Chip card PIN block for online authentication

<xs:element name="EMVData" type="EMVDataType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">When processing with an EMV capable client, this element may need to be provided. It consists of certain online authentication data or the reason for not utilizing the EMV capabilities. EMV tag data should be sent in the separate TagData field.</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
