FleetPromptDataType Complex Type

Namespace

http://Hps.Exchange.PosGateway

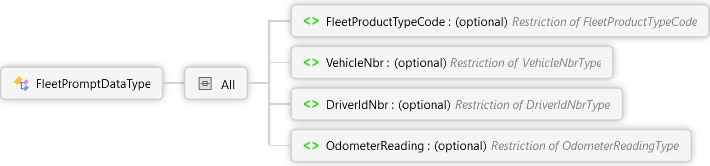

Diagram

Overview

FleetPromptDataType

All

FleetProductTypeCode optional FleetProductTypeCode Simple Type

Value encoded on the card that drives what information is prompted for at the point of sale.

Valid values include:

1 - Prompts for ID number and odometer reading
2 - Prompts for vehicle number and odometer reading
3 - Prompts for driver number and odometer reading
4 - Prompts for odometer reading only
5 - No prompts issued

VehicleNbr optional VehicleNbrType Simple Type

The Vehicle Number entered by the driver. Required when the FleetProductTypeCode is 2. For Mastercard the maximum value is 6 digits.

DriverIdNbr optional DriverIdNbrType Simple Type

The Driver ID / Driver Number entered by the driver. Required when the FleetProductTypeCode is 1 or 3. For Mastercard the maximum value is 6 digits.

OdometerReading optional OdometerReadingType Simple Type

The Odometer Reading entered by the driver. Required when the FleetProductTypeCode is 1, 2, 3, or 4.

Used By

FleetPromptData Element

Source

<xs:complexType name="FleetPromptDataType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="FleetProductTypeCode" type="FleetProductTypeCode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Value encoded on the card that drives what information is prompted for at the point of sale.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Valid values include:</p>
          <ul xmlns="http://Hps.Exchange.PosGateway">
            <li>1 - Prompts for ID number and odometer reading</li>
            <li>2 - Prompts for vehicle number and odometer reading</li>
            <li>3 - Prompts for driver number and odometer reading</li>
            <li>4 - Prompts for odometer reading only</li>
            <li>5 - No prompts issued</li>
          </ul>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="VehicleNbr" type="VehicleNbrType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The Vehicle Number entered by the driver. Required when the FleetProductTypeCode is 2.  For Mastercard the
maximum value is 6 digits.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DriverIdNbr" type="DriverIdNbrType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The Driver ID / Driver Number entered by the driver. Required when the FleetProductTypeCode is 1 or 3.  For Mastercard the
maximum value is 6 digits.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdometerReading" type="OdometerReadingType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The Odometer Reading entered by the driver. Required when the FleetProductTypeCode is 1, 2, 3, or 4.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
