LineItemDetail Element

Namespace

http://Hps.Exchange.PosGateway

Type

MCLineItemsType Complex Type

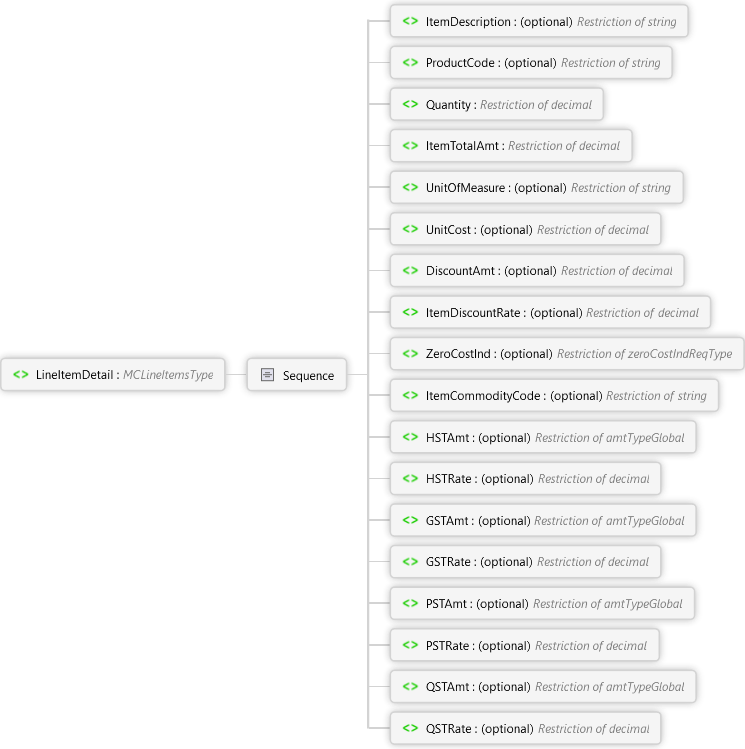

Diagram

Overview

LineItemDetail MCLineItemsType Complex Type

Sequence

ItemDescription optional Restriction of xs:string

Description of the good or service being supplied.

ProductCode optional Restriction of xs:string

Identifies the product being purchased, for example, an inventory number or UPC code. A value other than spaces or zeros should be provided.

Quantity Restriction of xs:decimal

The number of units of the product being purchased. Must be numeric and greater than zero.

ItemTotalAmt Restriction of xs:decimal

Contains the total amount of the line item; calculated as unit cost multiplied by quantity, less discount. The total amount must be greater than zero.

UnitOfMeasure optional Restriction of xs:string

Contains the code indicating the unit of measure (gallons, etc.).

Source

<xs:element name="LineItemDetail" type="MCLineItemsType" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
