PosGateway Schema
MidRspType Complex Type
PosGateway Schema : MidRspType Complex Type
Namespace http://Hps.Exchange.PosGateway

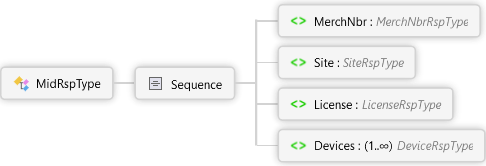

Diagram
Devices Element License Element Site Element MerchNbr Element Sequence MidRspType Complex Type
Overview
MidRspType
Sequence
MerchNbr MerchNbrRspType Complex Type
Sequence
MerchNbr merchNbrType Simple Type
Name Restriction of xs:string
Addr1 optional Restriction of xs:string
Addr2 optional Restriction of xs:string
Addr3 optional Restriction of xs:string
City optional Restriction of xs:string
State optional Restriction of xs:string
Zip optional Restriction of xs:string
CustomerSvcPhoneNbr optional Restriction of xs:string
Site SiteRspType Complex Type
License LicenseRspType Complex Type
Devices 1..∞ DeviceRspType Complex Type
All
Device DeviceType Complex Type
Sequence
DeviceId deviceIdType Simple Type
IndustryCode xs:string
DeviceTypeId xs:int
DeviceDescription optional xs:string
CheckProcessor optional xs:string
CheckSEC 0..∞ xs:string
PDLNotification optional booleanType Simple Type

PDLNotification flag that has been persisted for this device.

Settings optional NameValuePairRspType Complex Type
Used By
MIDS Element
MIDS Element
Source
<xs:complexType name="MidRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element name="MerchNbr" type="MerchNbrRspType" />
    <xs:element name="Site" type="SiteRspType" />
    <xs:element name="License" type="LicenseRspType" />
    <xs:element name="Devices" type="DeviceRspType" maxOccurs="unbounded" />
  </xs:sequence>
</xs:complexType>
See Also
PosGateway Schema
