PosGateway Schema
NTRSDeviceDataType Complex Type
PosGateway Schema : NTRSDeviceDataType Complex Type
Namespace http://Hps.Exchange.PosGateway

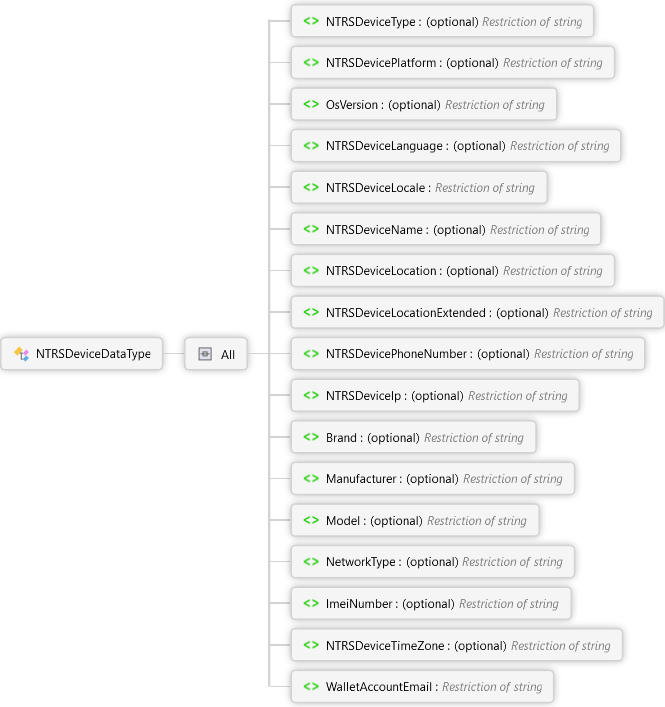

Diagram
WalletAccountEmail Element NTRSDeviceTimeZone Element ImeiNumber Element NetworkType Element Model Element Manufacturer Element Brand Element NTRSDeviceIp Element NTRSDevicePhoneNumber Element NTRSDeviceLocationExtended Element NTRSDeviceLocation Element NTRSDeviceName Element NTRSDeviceLocale Element NTRSDeviceLanguage Element OsVersion Element NTRSDevicePlatform Element NTRSDeviceType Element All NTRSDeviceDataType Complex Type
Overview
NTRSDeviceDataType
All
NTRSDeviceType optional Restriction of xs:string

The type of the user's browser or mobile device. It has pre-defined values.

Valid values PHONE, TABLET, PHONE_TABLET, PC, WATCH, TV, WEARABLE_DEVICE, AUTOMOBILE_DEVICE, SERVER, CARD, STICKER, DEVICE_PERIPHERAL, TAG, JEWELRY, FASHION_ACCESSORY, GARMENT, DOMESTIC_APPLIANCE, MEDIA_GAMING_DEVICE, OTHER

NTRSDevicePlatform optional Restriction of xs:string

The operating system of the user's browser or mobile device

Valid values ANDROID, IOS, WINDOWS, BLACKBERRY, TIZEN, WEB, PAGARE_EMBEDDED_OS, ANDROID_WEAR, EMBEDDED_OS, OTHER

OsVersion optional Restriction of xs:string

The version of the operating system of the user's browser or mobile device.

NTRSDeviceLanguage optional Restriction of xs:string

The language that the application communicates with the cardholder.

NTRSDeviceLocale Restriction of xs:string

The language that the application communicates with the cardholder. It is based on BCP 47 standard. The language must be lowercase and the country must be uppercase. The language and country should be separated using a hyphen (-)

NTRSDeviceName optional Restriction of xs:string

The name of the target provisioned device

NTRSDeviceLocation optional Restriction of xs:string

The latitude and longitude coordinates of the user's browser or mobile device location (no decimals provided)

NTRSDeviceLocationExtended optional Restriction of xs:string

The latitude and longitude coordinates of the target device location including up to two decimal places

NTRSDevicePhoneNumber optional Restriction of xs:string

The telephone number or the last few digits of the telephone number

NTRSDeviceIp optional Restriction of xs:string

The IP address of the user's browser or mobile device

Brand optional Restriction of xs:string

The brand of the user's browser or mobile device

Manufacturer optional Restriction of xs:string

The version of the operating system of the user's browser or mobile device

Model optional Restriction of xs:string

The model of the user's browser or mobile device

NetworkType optional Restriction of xs:string

The type of network

Vald values WIFI, CELLULAR, GPS, OTHER, DSL

ImeiNumber optional Restriction of xs:string

The IMEI number of the device

NTRSDeviceTimeZone optional Restriction of xs:string

The time zone of the user's browser or mobile device

WalletAccountEmail Restriction of xs:string

The email address of the client that is linked to his wallet account login

Used By
NTRSDeviceData Element
Source
<xs:complexType name="NTRSDeviceDataType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="NTRSDeviceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The type of the user's browser or mobile device. It has pre-defined values.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Valid values PHONE, TABLET, PHONE_TABLET, PC, WATCH, TV, WEARABLE_DEVICE, AUTOMOBILE_DEVICE, SERVER, CARD, STICKER, DEVICE_PERIPHERAL, TAG, JEWELRY, FASHION_ACCESSORY, GARMENT, DOMESTIC_APPLIANCE, MEDIA_GAMING_DEVICE, OTHER</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="20" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDevicePlatform" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The operating system of the user's browser or mobile device</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Valid values ANDROID, IOS, WINDOWS, BLACKBERRY, TIZEN, WEB, PAGARE_EMBEDDED_OS, ANDROID_WEAR, EMBEDDED_OS, OTHER</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="20" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="OsVersion" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The version of the operating system of the user's browser or mobile device.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="32" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceLanguage" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The language that the application communicates with the cardholder.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="3" />
          <xs:maxLength value="3" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceLocale" minOccurs="1">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The language that the application communicates with the cardholder. It is based on BCP 47 standard. The language must be lowercase and the country must be uppercase. The language and country should be separated using a hyphen (-)</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="35" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceName" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The name of the target provisioned device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="256" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The latitude and longitude coordinates of the user's browser or mobile device location (no decimals provided)</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="9" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceLocationExtended" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The latitude and longitude coordinates of the target device location including up to two decimal places</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="16" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDevicePhoneNumber" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The telephone number or the last few digits of the telephone number</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="31" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceIp" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The IP address of the user's browser or mobile device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="15" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Brand" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The brand of the user's browser or mobile device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="32" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Manufacturer" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The version of the operating system of the user's browser or mobile device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="32" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Model" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The model of the user's browser or mobile device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="32" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NetworkType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The type of network</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Vald values WIFI, CELLULAR, GPS, OTHER, DSL</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="8" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ImeiNumber" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The IMEI number of the device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="24" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="NTRSDeviceTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The time zone of the user's browser or mobile device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="16" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="WalletAccountEmail" minOccurs="1">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The email address of the client that is linked to his wallet account login</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="48" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:all>
</xs:complexType>
See Also
PosGateway Schema
