PosDebitAddToBatchReqType Complex Type

Namespace

http://Hps.Exchange.PosGateway

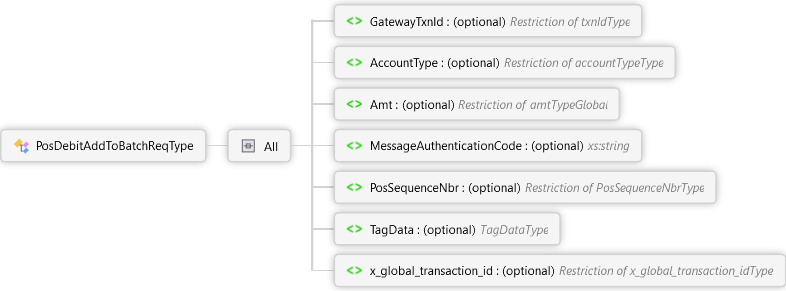

Diagram

Overview

PosDebitAddToBatchReqType

All

GatewayTxnId optional txnIdType Simple Type

Gateway-generated transaction identifier returned in the response of the original transaction. This indicates the transaction to be updated.

AccountType optional accountTypeType Simple Type

Indicates the type of account provided; see the associated Type enumerations for specific values supported.

Amt optional amtTypeGlobal Simple Type

If present, this amount replaces the amount to be settled for the original transaction; this includes all other "Info" amounts associated with the original transaction or provided in this request.

MessageAuthenticationCode optional xs:string

A block of encrypted data to be sent from the POS on every contact Interac sale and return request. Required for Canadian merchants processing debit reversals.

PosSequenceNbr optional PosSequenceNbrType Simple Type

POS sequence number for Canadian Debit transactions.

TagData optional TagDataType Complex Type

EMV or Non-EMV tag data in TLV format. For EMV tag data this would consist of the chip card results after applying the Issuer response tags.

Note: Required on DebitAddtoBatch for Canadian Interac/Debit.

All

TagValues optional Extension of xs:string

This field holds the tag data values.

source required Restriction of xs:string

This field specifies the source of the tag data value. It can be either chip or msd.

x_global_transaction_id optional x_global_transaction_idType Simple Type

Client generated transaction identifier sent in the request of the original transaction. This indicates the transaction to be updated.

Note: This is for internal use only.

Used By

DebitAddToBatch Element

Source

<xs:complexType name="PosDebitAddToBatchReqType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="GatewayTxnId" type="txnIdType" default="-1" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Gateway-generated transaction identifier returned in the response of the original transaction. This indicates the transaction to be updated.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AccountType" type="accountTypeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates the type of account provided; see the associated Type enumerations for specific values supported.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Amt" type="amtTypeGlobal" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">If present, this amount replaces the amount to be settled for the original transaction; this includes all other "Info" amounts associated with the original transaction or provided in this request.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MessageAuthenticationCode" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A block of encrypted data to be sent from the POS on every contact Interac sale and return request. Required for Canadian merchants processing debit reversals.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PosSequenceNbr" type="PosSequenceNbrType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">POS sequence number for Canadian Debit transactions.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TagData" type="TagDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">EMV or Non-EMV tag data in TLV format. For EMV tag data this would consist of the chip card results after applying the Issuer response tags.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Required on DebitAddtoBatch for Canadian Interac/Debit.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="x_global_transaction_id" type="x_global_transaction_idType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Client generated transaction identifier sent in the request of the original transaction. This indicates the transaction to be updated.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This is for internal use only.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
