PosGetUserDeviceSettingsRspType Complex Type

Namespace

http://Hps.Exchange.PosGateway

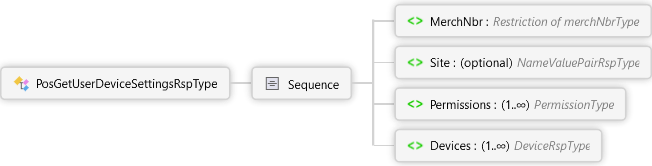

Diagram

Overview

PosGetUserDeviceSettingsRspType

Sequence

MerchNbr merchNbrType Simple Type

Site optional NameValuePairRspType Complex Type

Sequence

NameValuePair 1..∞ NameValuePairType Complex Type

Sequence

Name xs:string

Value xs:string

Permissions 1..∞ PermissionType Complex Type

Sequence

Permission xs:string

Devices 1..∞ DeviceRspType Complex Type

All

Device DeviceType Complex Type

Sequence

DeviceId deviceIdType Simple Type

IndustryCode xs:string

DeviceTypeId xs:int

DeviceDescription optional xs:string

CheckProcessor optional xs:string

CheckSEC 0..∞ xs:string

PDLNotification optional booleanType Simple Type

PDLNotification flag that has been persisted for this device.

Settings optional NameValuePairRspType Complex Type

Sequence

NameValuePair 1..∞ NameValuePairType Complex Type

Used By

GetUserDeviceSettings Element

Source

<xs:complexType name="PosGetUserDeviceSettingsRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element name="MerchNbr" type="merchNbrType" />
    <xs:element name="Site" type="NameValuePairRspType" minOccurs="0" />
    <xs:element name="Permissions" type="PermissionType" maxOccurs="unbounded" />
    <xs:element name="Devices" type="DeviceRspType" maxOccurs="unbounded" />
  </xs:sequence>
</xs:complexType>
