PosReportActivityReqType Complex Type

Namespace

http://Hps.Exchange.PosGateway

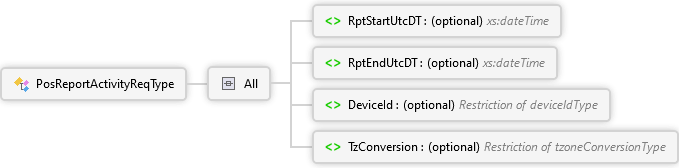

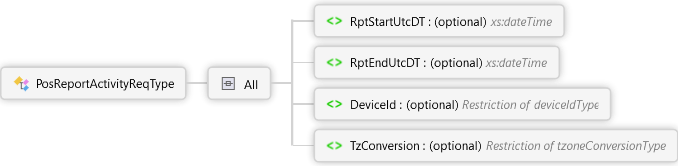

Diagram

Overview

PosReportActivityReqType

All

RptStartUtcDT optional xs:dateTime

Start date time used to filter the results to a particular date time range. The date time must be specified in UTC (Coordinated Universal Time). If the element is not present, start date time will be defaulted to today at 00:00:00.

Transactions must have been run at or after this time to be returned.

RptEndUtcDT optional xs:dateTime

End date time used to filter the results to a particular date time range. The date time must be specified in UTC (Coordinated Universal Time). If the element is not present, end date time will be defaulted to tomorrow at 00:00:00.

Transactions must have been run before or at this time to be returned.

Note: The end date/time must be after the start date/time.

DeviceId optional deviceIdType Simple Type

Device identifier used to filter the report results to a particular device.

Note: If not provided, all devices associated with the site will be included.

TzConversion optional tzoneConversionType Simple Type

Indicates that a time zone conversion should be applied to dates/times in the response; see the associated Type enumerations for specific values supported.

Used By

ReportActivity Element

Source

<xs:complexType name="PosReportActivityReqType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="RptStartUtcDT" type="xs:dateTime" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Start date time used to filter the results to a particular date time range. The date time must be specified in UTC (Coordinated Universal Time). If the element is not present, start date time will be defaulted to today at 00:00:00.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Transactions must have been run at or after this time to be returned.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RptEndUtcDT" type="xs:dateTime" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">End date time used to filter the results to a particular date time range. The date time must be specified in UTC (Coordinated Universal Time). If the element is not present, end date time will be defaulted to tomorrow at 00:00:00.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Transactions must have been run before or at this time to be returned.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> The end date/time must be after the start date/time.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DeviceId" type="deviceIdType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Device identifier used to filter the report results to a particular device.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> If not provided, all devices associated with the site will be included.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TzConversion" type="tzoneConversionType" default="UTC" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates that a time zone conversion should be applied to dates/times in the response; see the associated Type enumerations for specific values supported.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
