PosGateway Schema
Header Element
PosGateway Schema > PosReportOpenAuthsRspType Complex Type : Header Element
Description

Report header that can include general information related to the details, criteria used for the report, totals, etc.

Namespace http://Hps.Exchange.PosGateway

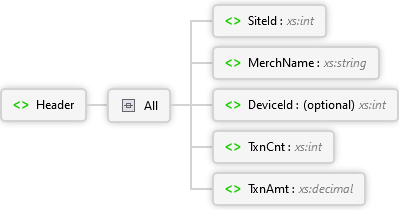

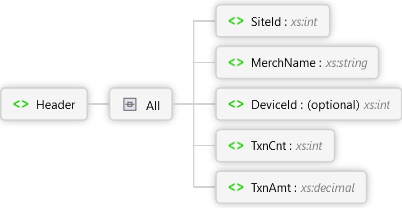

Diagram
TxnAmt Element TxnCnt Element DeviceId Element MerchName Element SiteId Element All Header Element
Overview
Header

Report header that can include general information related to the details, criteria used for the report, totals, etc.

All
SiteId xs:int
MerchName xs:string

Merchant name associated with this site id

DeviceId optional xs:int

Device identifier of report results. If not present, results are for all devices associated with the site.

TxnCnt xs:int

Number of transactions in the batch

TxnAmt xs:decimal

Sum of transaction amounts in the batch

Source
<xs:element name="Header" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Report header that can include general information related to the details, criteria used for the report, totals, etc.</p>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:all>
      <xs:element name="SiteId" type="xs:int" />
      <xs:element name="MerchName" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Merchant name associated with this site id</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DeviceId" type="xs:int" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Device identifier of report results. If not present, results are for all devices associated with the site.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="TxnCnt" type="xs:int">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Number of transactions in the batch</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="TxnAmt" type="xs:decimal">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Sum of transaction amounts in the batch</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:all>
  </xs:complexType>
</xs:element>
See Also
PosReportOpenAuthsRspType Complex TypePosGateway Schema
