Open the Portico Developer Guide site
PosGateway Schema
Details Element
PosGateway Schema > PosReportSearchRspType Complex Type : Details Element
Description

Report details, in the order found

Note: If the data was defined in the request or response, a description has not been added here; only fields that are being introduced in this response have additional detail added. Typically, these will be fields that drive business logic that can be assumed at the time of the transaction or they are calculated at the time of the report.

Namespace http://Hps.Exchange.PosGateway

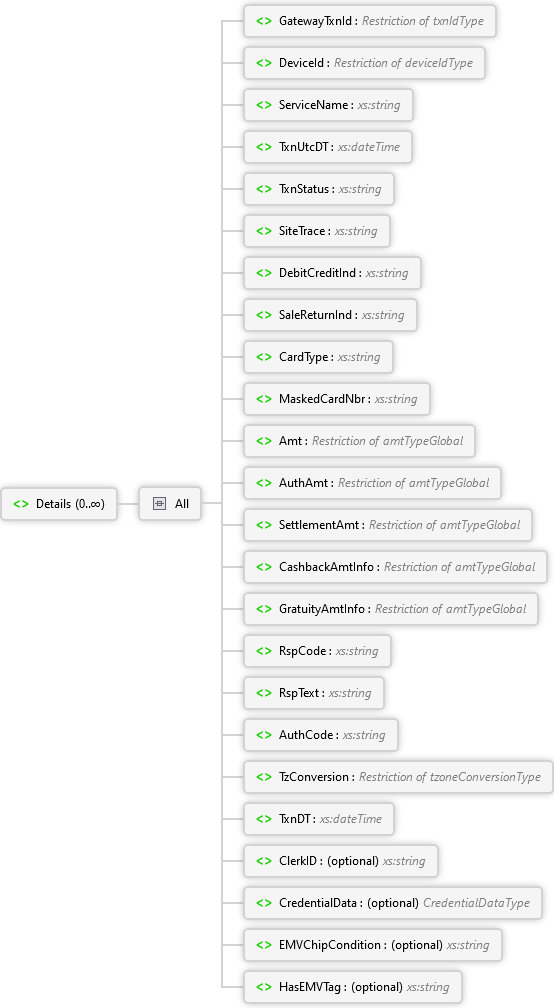

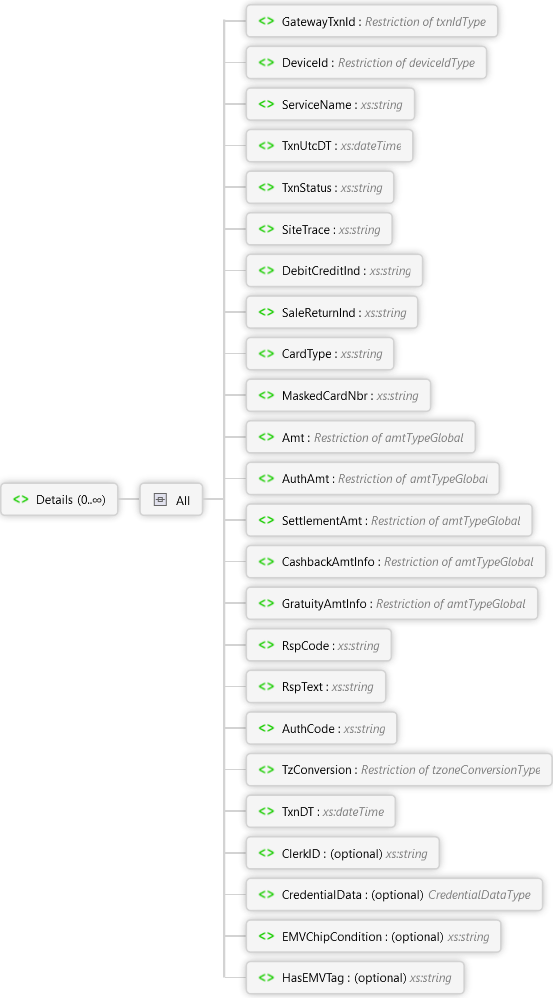

Diagram
HasEMVTag Element EMVChipCondition Element CredentialData Element ClerkID Element TxnDT Element TzConversion Element AuthCode Element RspText Element RspCode Element GratuityAmtInfo Element CashbackAmtInfo Element SettlementAmt Element AuthAmt Element Amt Element MaskedCardNbr Element CardType Element SaleReturnInd Element DebitCreditInd Element SiteTrace Element TxnStatus Element TxnUtcDT Element ServiceName Element DeviceId Element GatewayTxnId Element All Details Element
Overview
Details 0..∞

Report details, in the order found

Note: If the data was defined in the request or response, a description has not been added here; only fields that are being introduced in this response have additional detail added. Typically, these will be fields that drive business logic that can be assumed at the time of the transaction or they are calculated at the time of the report.

All
ServiceName xs:string

This is the original request type (i.e. CreditSale)

TxnUtcDT xs:dateTime

Transaction response date time in UTC (Coordinated Universal Time)

TxnStatus xs:string

The current transaction status at the time of the search

These can vary, but some of the key status values include:

  • Active - 'A'
  • Closed - 'C'
  • Voided - 'V'
  • Inactive - 'I'
  • Reversed - 'R'

SiteTrace xs:string
DebitCreditInd xs:string

Indicates if the transaction was a 'D' (debit) or 'C' (credit)

SaleReturnInd xs:string

Indicates if the transaction was a 'S' (sale) or 'R' (return)

CardType xs:string
MaskedCardNbr xs:string

This is the original transaction's card number, if any. It will contain the first six and last four digits with '*' filling in the middle. This value is safe for receipts and displays.

Amt amtTypeGlobal Simple Type

The original requested amount

AuthAmt amtTypeGlobal Simple Type

The actual authorized amount

Note: This can be different from the original requested amount for partial authorizations.

SettlementAmt amtTypeGlobal Simple Type

The amount the transaction would settle for if it were closed as part of a batch

Note: This does not mean that it has or will close for this amount. The client controls this by adding it to the batch and closing the batch.

Note: This can be different from the original requested amount or the authorized amount for many reasons including: transaction edits (tip), reversals, additional authorizations, etc.

RspCode xs:string

Issuer response code

RspText xs:string

Issuer response text

AuthCode xs:string
TzConversion tzoneConversionType Simple Type

Time zone conversion applied to report results

TxnDT xs:dateTime

Transaction response date time in the time zone conversion requested

ClerkID optional xs:string
CredentialData optional CredentialDataType Complex Type

Credential details tied to a user session

Note: This is for internal use only.

All
DisplayName optional descriptionType Simple Type

User display name

ImpersonatedDisplayName optional xs:string

Impersonated user display name

EMVChipCondition optional xs:string
HasEMVTag optional xs:string

Indicates whether or not EMVTags were sent on this transaction; 'Y' indicates that it did and 'N' that it did not

Source
<xs:element name="Details" minOccurs="0" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Report details, in the order found</p>
      <p xmlns="http://Hps.Exchange.PosGateway" />
      <p xmlns="http://Hps.Exchange.PosGateway">
        <strong>Note:</strong> If the data was defined in the request or response, a description has not been added here; only fields that are being introduced in this response have additional detail added. Typically, these will be fields that drive business logic that can be assumed at the time of the transaction or they are calculated at the time of the report.
            </p>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:all>
      <xs:element name="GatewayTxnId" type="txnIdType" />
      <xs:element name="DeviceId" type="deviceIdType" />
      <xs:element name="ServiceName" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">This is the original request type (i.e. CreditSale)</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="TxnUtcDT" type="xs:dateTime">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Transaction response date time in UTC (Coordinated Universal Time)</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="TxnStatus" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">The current transaction status at the time of the search</p>
            <p xmlns="http://Hps.Exchange.PosGateway">
                    These can vary, but some of the key status values include:
                    <ul><li>Active - 'A'</li><li>Closed - 'C'</li><li>Voided - 'V'</li><li>Inactive - 'I'</li><li>Reversed - 'R'</li></ul></p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SiteTrace" type="xs:string" />
      <xs:element name="DebitCreditInd" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Indicates if the transaction was a 'D' (debit) or 'C' (credit)</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SaleReturnInd" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Indicates if the transaction was a 'S' (sale) or 'R' (return)</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="CardType" type="xs:string" />
      <xs:element name="MaskedCardNbr" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">This is the original transaction's card number, if any. It will contain the first six and last four digits with '*' filling in the middle. This value is safe for receipts and displays.</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="Amt" type="amtTypeGlobal">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">The original requested amount</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="AuthAmt" type="amtTypeGlobal">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">The actual authorized amount</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This can be different from the original requested amount for partial authorizations.
                  </p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="SettlementAmt" type="amtTypeGlobal">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">The amount the transaction would settle for if it were closed as part of a batch</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This does not mean that it has or will close for this amount. The client controls this by adding it to the batch and closing the batch.
                  </p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This can be different from the original requested amount or the authorized amount for many reasons including: transaction edits (tip), reversals, additional authorizations, etc.
                  </p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="CashbackAmtInfo" type="amtTypeGlobal" />
      <xs:element name="GratuityAmtInfo" type="amtTypeGlobal" />
      <xs:element name="RspCode" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Issuer response code</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="RspText" type="xs:string">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Issuer response text</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="AuthCode" type="xs:string" />
      <xs:element name="TzConversion" type="tzoneConversionType" default="UTC">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Time zone conversion applied to report results</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="TxnDT" type="xs:dateTime">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Transaction response date time in the time zone conversion requested</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ClerkID" type="xs:string" minOccurs="0" />
      <xs:element name="CredentialData" type="CredentialDataType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Credential details tied to a user session</p>
            <p xmlns="http://Hps.Exchange.PosGateway" />
            <p xmlns="http://Hps.Exchange.PosGateway">
              <strong>Note:</strong> This is for internal use only.
                  </p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="EMVChipCondition" type="xs:string" minOccurs="0" />
      <xs:element name="HasEMVTag" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <p xmlns="http://Hps.Exchange.PosGateway">Indicates whether or not EMVTags were sent on this transaction; 'Y' indicates that it did and 'N' that it did not</p>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:all>
  </xs:complexType>
</xs:element>
See Also
PosReportSearchRspType Complex TypePosGateway Schema
