PosGateway Schema
PosReportTxnDetailReqType Complex Type
PosGateway Schema : PosReportTxnDetailReqType Complex Type
Namespace http://Hps.Exchange.PosGateway

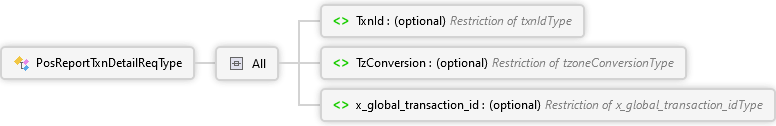

Diagram
x_global_transaction_id Element TzConversion Element TxnId Element All PosReportTxnDetailReqType Complex Type
Overview
All
TxnId optional txnIdType Simple Type

Gateway-generated transaction identifier returned in the response of the original transaction. This indicates a specific transaction to be returned.

Note: This is the value referred to as GatewayTxnId in other messages.

TzConversion optional tzoneConversionType Simple Type

Indicates that a time zone conversion should be applied to dates/times in the response; see the associated Type enumerations for specific values supported.

x_global_transaction_id optional x_global_transaction_idType Simple Type

Client generated transaction identifier sent in the request of the original transaction. This indicates the transaction to be retrieved.

Note: This is for internal use only.

Used By
ReportTxnDetail Element
Source
<xs:complexType name="PosReportTxnDetailReqType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="TxnId" type="txnIdType" default="-1" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Gateway-generated transaction identifier returned in the response of the original transaction. This indicates a specific transaction to be returned.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This is the value referred to as GatewayTxnId in other messages.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TzConversion" type="tzoneConversionType" default="UTC" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates that a time zone conversion should be applied to dates/times in the response; see the associated Type enumerations for specific values supported.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="x_global_transaction_id" type="x_global_transaction_idType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Client generated transaction identifier sent in the request of the original transaction. This indicates the transaction to be retrieved.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This is for internal use only.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
See Also
PosGateway Schema
