PosUserDetailRspType Complex Type

Namespace

http://Hps.Exchange.PosGateway

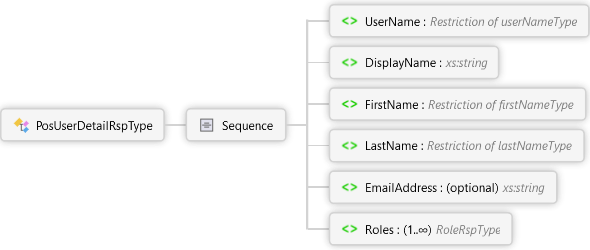

Diagram

Overview

PosUserDetailRspType

Sequence

UserName userNameType Simple Type

DisplayName xs:string

FirstName firstNameType Simple Type

LastName lastNameType Simple Type

EmailAddress optional xs:string

Roles 1..∞ RoleRspType Complex Type

All

Role xs:string

Used By

Users Element

Source

<xs:complexType name="PosUserDetailRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element name="UserName" type="userNameType" />
    <xs:element name="DisplayName" type="xs:string" />
    <xs:element name="FirstName" type="firstNameType" />
    <xs:element name="LastName" type="lastNameType" />
    <xs:element name="EmailAddress" type="xs:string" minOccurs="0" />
    <xs:element name="Roles" type="RoleRspType" maxOccurs="unbounded" />
  </xs:sequence>
</xs:complexType>
