PosGateway Schema
CashReturnReqBlock1Type Complex Type
PosGateway Schema : CashReturnReqBlock1Type Complex Type
Namespace http://Hps.Exchange.PosGateway

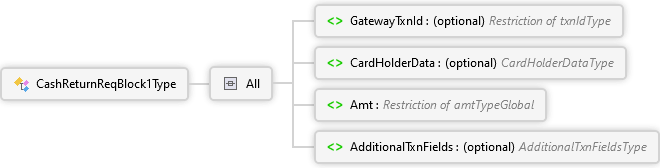

Diagram
AdditionalTxnFields Element Amt Element CardHolderData Element GatewayTxnId Element All CashReturnReqBlock1Type Complex Type
Overview
CashReturnReqBlock1Type
All
GatewayTxnId optional txnIdType Simple Type

Gateway-generated transaction identifier returned in the response of the original transaction. This must refer to a prior CashSale.

CardHolderData optional CardHolderDataType Complex Type

Card holder data

All
CardHolderFirstName optional firstNameType Simple Type

First name

CardHolderLastName optional lastNameType Simple Type

Last name

CardHolderAddr optional addrType Simple Type

Address

CardHolderCity optional cityType Simple Type

City

CardHolderState optional stateType Simple Type

State

CardHolderZip optional zipType Simple Type

Zip or postal code; see the associated Type pattern for restrictions.

Note: Canadian postal codes should be sent in the format "A0A0A0".

CardHolderPhone optional phoneType Simple Type

Phone number; see the associated Type pattern for restrictions.

CardHolderEmail optional emailType Simple Type

Email address

CardHolderLanguage optional languageIndicatorType Simple Type

CardHolder preferred language.

Note:This field is required for Canadian merchants.

Amt amtTypeGlobal Simple Type

The cash amount returned to the customer

AdditionalTxnFields optional AdditionalTxnFieldsType Complex Type

A common group of optional fields that are supported in several different transaction types for Merchant use.

All
Description optional descriptionType Simple Type

Free-form description field. This must not contain sensitive information.

InvoiceNbr optional Restriction of xs:string

Used to log the invoice number on transactions that are not eCommerce.

CustomerID optional customerIDType Simple Type

Used to log Merchant specific customer identification.

Note: For GETI check transactions, this is sent in the CUSTOM3 field.

Used By
Block1 Element
Source
<xs:complexType name="CashReturnReqBlock1Type" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="GatewayTxnId" type="txnIdType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Gateway-generated transaction identifier returned in the response of the original transaction. This must refer to a prior CashSale.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CardHolderData" type="CardHolderDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Card holder data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Amt" type="amtTypeGlobal">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The cash amount returned to the customer</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AdditionalTxnFields" type="AdditionalTxnFieldsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A common group of optional fields that are supported in several different transaction types for Merchant use.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
See Also
PosGateway Schema
