SecureECommerce Element

Description

Allows for sending Secure ECommerce data associated with the transaction. This data must be obtained from a certified device that conform to the 3DSecure standard.

NOTE: This functionality is deprecated. All new integrations are expected to use the Secure3D and, where applicable, WalletData blocks. All existing integrations to SecureECommerce need to be updated to use the new data block(s).

Namespace

http://Hps.Exchange.PosGateway

Type

SecureECommerceType Complex Type

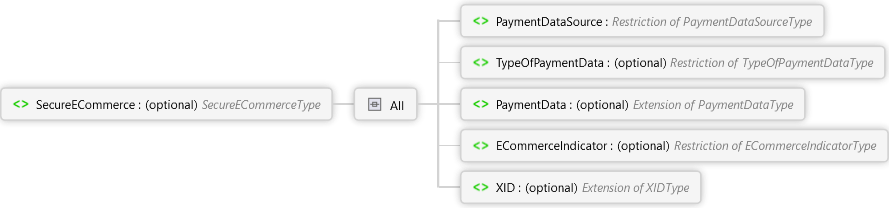

Diagram

Overview

SecureECommerce optional SecureECommerceType Complex Type

Allows for sending Secure ECommerce data associated with the transaction. This data must be obtained from a certified device that conform to the 3DSecure standard.

All

PaymentDataSource PaymentDataSourceType Simple Type

Payment Data Source is the API or source of the payment data.

TypeOfPaymentData optional TypeOfPaymentDataType Simple Type

Type of Payment Data. Required if PaymentData is included.

Note:Currently only 3DSecure is supported.

PaymentData optional Extension of PaymentDataType Simple Type

Payment Data received from payment tokenization service. Supported formats are Visa CAVV, Discover CAVV, AMEX Token Data Blocks, and MaterCard UCAF. All considered to be 3DSecure Type of Payment Data. Binary data must be encoded using base16 (Hex encoding) or base64 encoding.

Note:For Brand based 3DSecure Payment Data Sources, Payment Data is optional if no Payment Data was received due to a failed attempt to authenticate the card holder, in example.

For ApplePay, ApplePayApp, ApplePayWeb, GooglePayApp, GooglePayWeb, Payment Data is required.

encoding optional EncodingType Simple Type

Encoding used to encode binary PaymentData. Default is base64.

ECommerceIndicator optional ECommerceIndicatorType Simple Type

Optional Electronic Commerce Indicator or MasterCard UCI returned from the payment tokenization service to indicate the authentication results of the credit card payment.

Note:The ECommerceIndicator is ignored when PaymentDataSource is ApplePay, ApplePayApp, ApplePayWeb, GooglePayApp, GooglePayWeb.

XID optional Extension of XIDType Simple Type

XID genrated at the client which identifies the 3-D Secure transaction.

encoding optional EncodingType Simple Type

Encoding used to encode binary PaymentData. Default is base64.

Source

<xs:element name="SecureECommerce" type="SecureECommerceType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Allows for sending Secure ECommerce data associated with the transaction.  This data must be obtained from a certified device that conform to the 3DSecure standard.</p>
      <p xmlns="http://Hps.Exchange.PosGateway" />
      <p xmlns="http://Hps.Exchange.PosGateway">
        <strong>NOTE:</strong> This functionality is <strong>deprecated</strong>. All new integrations are expected to use the Secure3D and, where applicable, WalletData blocks. All existing integrations to SecureECommerce need to be updated to use the new data block(s).
            </p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
