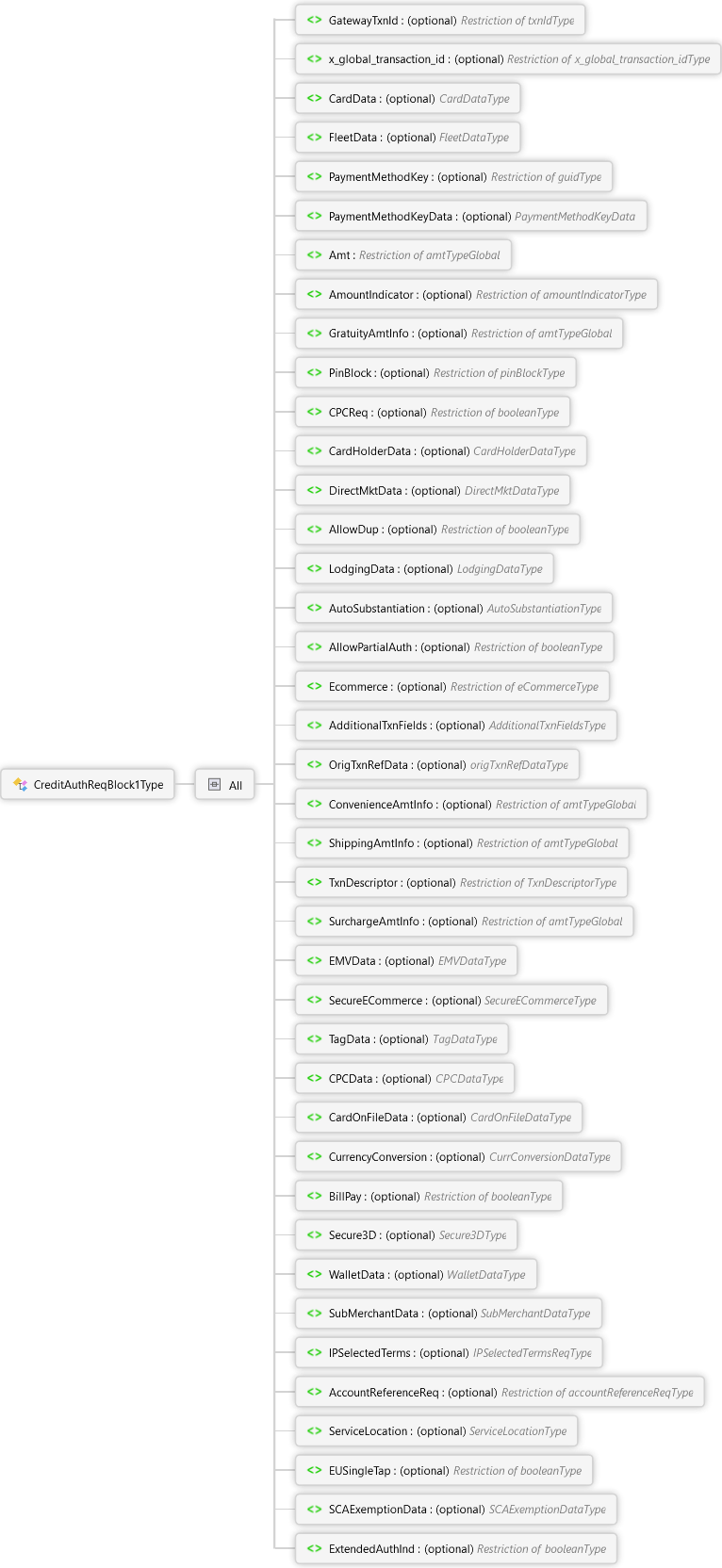

<xs:complexType name="CreditAuthReqBlock1Type" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="GatewayTxnId" type="txnIdType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Gateway-generated transaction identifier returned in the response of the original transaction. This indicates the transaction from which card data will be reused.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> When using a prior transaction id, card data should not be sent and original transaction reference data will be required.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="x_global_transaction_id" type="x_global_transaction_idType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Client generated transaction identifier sent in the request of the original transaction.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This is for internal use only.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CardData" type="CardDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A common element used in several different transactions for supplying payment method information.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">This includes a choice of typical payment representations like track data, manually entered data, and token information. It also includes options for specifying how the supplied data has been encrypted or to request a multi-use token be supplied in the response.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PaymentMethodKey" type="guidType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Unique key generated by PayPlan associated with a stored payment method</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> When using a key, card data should not be sent. However, stored customer data can be overridden using the card holder data.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PaymentMethodKeyData" type="PaymentMethodKeyData" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">These fields provide a way to override stored payment information or to provide additional information in card present situations. This is for the current transaction only and will not be stored for future use.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This element is only valid when supplying a PaymentMethodKey.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Amt" type="amtTypeGlobal">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The amount requested for authorization; this includes all other "Info" amounts provided as part of this request.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AmountIndicator" type="amountIndicatorType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">
              Valid values include:
              <ul><li><strong>'E'</strong> indicates that Amt is an estimated amount
                </li><li><strong>'F'</strong> indicates the Amt is final
                </li></ul></p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> In the case of <strong>'F'</strong>, the Amt should not be manipulated and no CreditIncrementalAuth should be ran.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GratuityAmtInfo" type="amtTypeGlobal" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Gratuity amount information; this defines the portion of the total amount provided as part of this request that was specifically for gratuity. This is informational only and will not alter the amount processed as part of the transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PinBlock" type="pinBlockType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">PIN block generated from the encrypted cardholder PIN and key serial number (KSN); see the guide for the specific PIN pad device being used to determine how to obtain the data elements required to create a PIN block.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Only used for UnionPay transactions processing to the GSAP-NA and GSAP-AP authorization platforms. Not for use with EMV transactions. Refer to EMVData.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CPCReq" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This is used to request the issuer to return whether or not the supplied card is a commercial card</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> See the CPCInd in the corresponding response transaction detail.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CardHolderData" type="CardHolderDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Card holder data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DirectMktData" type="DirectMktDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Direct marketing data; eCommerce</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AllowDup" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This is important in cases where the client processes a large number of similar transactions in a very short period of time; sending "Y" will skip duplicate checking on this transaction</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LodgingData" type="LodgingDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Lodging data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AutoSubstantiation" type="AutoSubstantiationType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Auto substantiation data; used for healthcare</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AllowPartialAuth" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates whether or not a partial authorization is supported by terminal; the default is N.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Ecommerce" type="eCommerceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Identifies this transaction as eCommerce or mail order/telephone order; see the associated Type enumerations for specific values supported.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AdditionalTxnFields" type="AdditionalTxnFieldsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A common group of optional fields that are supported in several different transaction types for Merchant use.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OrigTxnRefData" type="origTxnRefDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This element is required when a GatewayTxnId is used instead of card data. At least one of the sub-fields must be supplied. Any supplied data must match the corresponding data on the original transaction being referenced.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ConvenienceAmtInfo" type="amtTypeGlobal" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Convenience fee amount information; this defines the portion of the total amount provided as part of this request that was specifically for a convenience fee. This is informational only and will not alter the amount processed as part of the transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ShippingAmtInfo" type="amtTypeGlobal" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Shipping amount information; this defines the portion of the total amount provided as part of this request that was specifically for shipping. This is informational only and will not alter the amount processed as part of the transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TxnDescriptor" type="TxnDescriptorType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Transaction description that is concatenated to a configurable merchant DBA name. The resulting string is sent to the card issuer as the Merchant Name.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Updates to the device are required to utilize this feature. See your Heartland representative for more details.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SurchargeAmtInfo" type="amtTypeGlobal" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Surcharge amount information; this defines the portion of the total amount provided as part of this request that was specifically for a surcharge. This is informational only and will not alter the amount processed as part of the transaction. </p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> This field is limited to 8 digits with implied decimal.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="EMVData" type="EMVDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">When processing with an EMV capable client, this element may need to be provided. It consists of certain online authentication data or the reason for not utilizing the EMV capabilities. EMV tag data should be sent in the separate TagData field.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SecureECommerce" type="SecureECommerceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Allows for sending Secure ECommerce data associated with the transaction.  This data must be obtained from a certified device that conform to the 3DSecure standard.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TagData" type="TagDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">EMV or Non-EMV tag data in TLV format</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CPCData" type="CPCDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Corporate purchasing card data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CardOnFileData" type="CardOnFileDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Card On File Data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CurrencyConversion" type="CurrConversionDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Data block for Currency Conversion.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Integration must be through GP-API</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="BillPay" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates whether or not the transaction is a bill payment.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Merchants requiring Bill Payments should use RecurringBilling.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Secure3D" type="Secure3DType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Allows for sending 3DSecure Authentication data associated with the transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WalletData" type="WalletDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Allows for sending Wallet Authentication data associated with the transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SubMerchantData" type="SubMerchantDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Allows for sending Sub-Merchant data associated with the transaction. For Future Use.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> For internal use only.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="IPSelectedTerms" type="IPSelectedTermsReqType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Information on the Installment Plan chosen by the customer. Usage varies by region and the Installments service provider.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Merchants located in the Asia Pacific region must provide the NbrInstallments and Program. SIPOptions is optional.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Merchants located in Mexico must provide the NbrInstallemnts, InstallmentPlan, and GracePeriod only.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">Merchants located in Canada must provide the Program and VISOptions.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">For Visa Installment Service (VIS) merchants must provide VISPlanOptions and Program.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AccountReferenceReq" type="accountReferenceReqType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">'Payment Account Reference' (PAR) is 29-character alphanumeric value requested by merchant. PAR is reference number associated with unique PAN and used by merchants to track transactions associated with customers PAN. Currently, PAR is only supported by Card Brand American Express.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Account Reference is supported only for HOST Exchange.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ServiceLocation" type="ServiceLocationType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">
              Details of the location where services are provided, if different from the merchant’s location. Should be provided for Mastercard transactions where applicable.
            </p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Currently only used by Mastercard.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="EUSingleTap" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This field provides a way for a European merchant to indicate whether a transaction is a Single Tap contactless transaction,
              or whether the request contains an intentionally duplicated (replayed) ATC value. Applies to MC transactions only.
              Valid values:
                Y - SingleTap
                N - ReplayedATC
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SCAExemptionData" type="SCAExemptionDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This fields provides a way for a European merchant to indicate that the transaction can take advantage of one of the exemptions to SCA. Applies to visa transactions only.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
