DeviceConfigurationType Complex Type

Namespace

http://Hps.Exchange.PosGateway

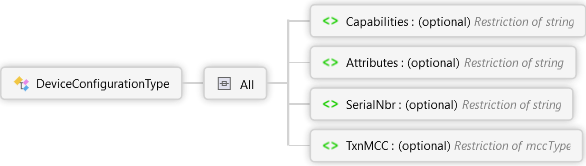

Diagram

Overview

DeviceConfigurationType

All

Capabilities optional Restriction of xs:string

Capabilities for a Device

Attributes optional Restriction of xs:string

Attributes for a Device

SerialNbr optional Restriction of xs:string

Serial number of PIN pad or PIN entry device (PED).

Note: Required for Interac debit services in Canada.

TxnMCC optional mccType Simple Type

MCC value that is passed from POS.

For original transactions only. Not used for transactions where the request contains an original transaction id.

Used By

DeviceConfiguration Element

Source

<xs:complexType name="DeviceConfigurationType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="Capabilities" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Capabilities for a Device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="30" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Attributes" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Attributes for a Device</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="30" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="SerialNbr" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Serial number of PIN pad or PIN entry device (PED).</p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <b>Note:</b> Required for Interac debit services in Canada.
            </p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="8" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="TxnMCC" type="mccType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">MCC value that is passed from POS.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">For original transactions only. Not used for transactions where the request contains an original transaction id.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
