DeviceConfiguration Element

Device capabilities and/or attributes needed by a Host processor that are not otherwise able to be determined. Please refer to the Developer Guide for further details as this data may be required for certain Host processors..

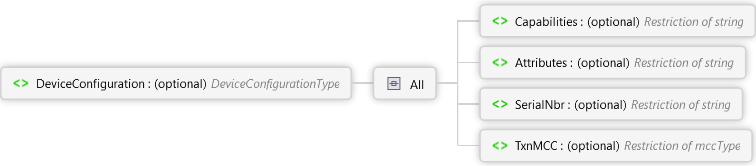

DeviceConfigurationType Complex Type

DeviceConfiguration optional DeviceConfigurationType Complex Type

Device capabilities and/or attributes needed by a Host processor that are not otherwise able to be determined. Please refer to the Developer Guide for further details as this data may be required for certain Host processors..

All

Capabilities optional Restriction of xs:string

Capabilities for a Device

Attributes optional Restriction of xs:string

Attributes for a Device

SerialNbr optional Restriction of xs:string

Serial number of PIN pad or PIN entry device (PED).

Note: Required for Interac debit services in Canada.

TxnMCC optional mccType Simple Type

MCC value that is passed from POS.

For original transactions only. Not used for transactions where the request contains an original transaction id.

<xs:element name="DeviceConfiguration" type="DeviceConfigurationType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">
                            Device capabilities and/or attributes needed by a Host processor that are not otherwise able to be determined.
                            Please refer to the Developer Guide for further details as this data may be required for certain Host processors..
                          </p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
