PDLCardTypeRspType Complex Type

Namespace

http://Hps.Exchange.PosGateway

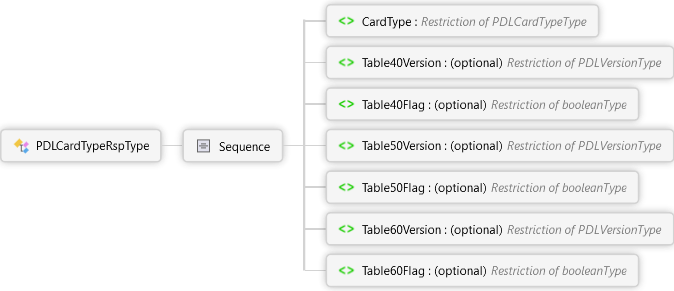

Diagram

Overview

PDLCardTypeRspType

Sequence

CardType PDLCardTypeType Simple Type

Card type

Table40Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 40 available to the POS

Table40Flag optional booleanType Simple Type

Indicates if a Table-ID 40 download is required

Table50Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 50 available to the POS

Table50Flag optional booleanType Simple Type

Indicates if a Table-ID 50 download is required

Table60Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 60 available to the POS

Table60Flag optional booleanType Simple Type

Indicates if a Table-ID 60 download is required

Used By

CardTypes Element

Source

<xs:complexType name="PDLCardTypeRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element name="CardType" type="PDLCardTypeType">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Card type</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table40Version" type="PDLVersionType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates the current version of Table-ID 40 available to the POS</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table40Flag" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates if a Table-ID 40 download is required</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table50Version" type="PDLVersionType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates the current version of Table-ID 50 available to the POS</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table50Flag" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates if a Table-ID 50 download is required</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table60Version" type="PDLVersionType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates the current version of Table-ID 60 available to the POS</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Table60Flag" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Indicates if a Table-ID 60 download is required</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
