PosGateway Schema
CardTypes Element
PosGateway Schema > PDLTable10RspType Complex Type : CardTypes Element
Description

Card type data

Namespace http://Hps.Exchange.PosGateway
Type
PDLCardTypeRspType Complex Type

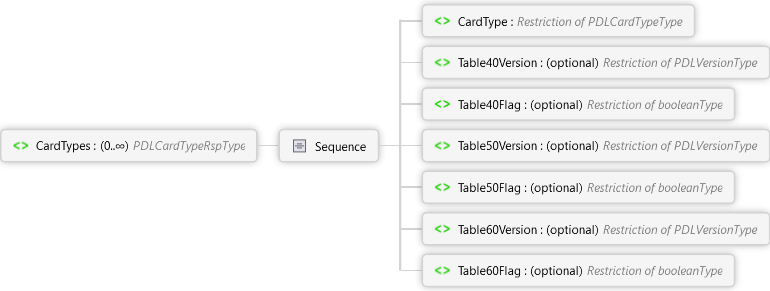

Diagram
Table60Flag Element Table60Version Element Table50Flag Element Table50Version Element Table40Flag Element Table40Version Element CardType Element Sequence CardTypes Element
Overview
CardTypes 0..∞ PDLCardTypeRspType Complex Type

Card type data

Sequence
CardType PDLCardTypeType Simple Type

Card type

Table40Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 40 available to the POS

Table40Flag optional booleanType Simple Type

Indicates if a Table-ID 40 download is required

Table50Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 50 available to the POS

Table50Flag optional booleanType Simple Type

Indicates if a Table-ID 50 download is required

Table60Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 60 available to the POS

Table60Flag optional booleanType Simple Type

Indicates if a Table-ID 60 download is required

Source
<xs:element name="CardTypes" type="PDLCardTypeRspType" minOccurs="0" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Card type data</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
See Also
PDLTable10RspType Complex Type | PosGateway Schema
