PosGateway Schema
Block1 Element
PosGateway Schema > PosCashSaleReqType Complex Type : Block1 Element
Description

Contains a series of required and optional elements

Namespace http://Hps.Exchange.PosGateway
Type
CashSaleReqBlock1Type Complex Type

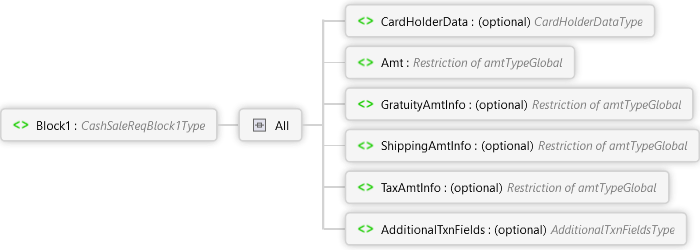

Diagram
AdditionalTxnFields Element TaxAmtInfo Element ShippingAmtInfo Element GratuityAmtInfo Element Amt Element CardHolderData Element All Block1 Element
Overview
Block1 CashSaleReqBlock1Type Complex Type

Contains a series of required and optional elements

All
CardHolderData optional CardHolderDataType Complex Type

Card holder data

All
CardHolderFirstName optional firstNameType Simple Type

First name

CardHolderLastName optional lastNameType Simple Type

Last name

CardHolderAddr optional addrType Simple Type

Address

CardHolderCity optional cityType Simple Type

City

CardHolderState optional stateType Simple Type

State

CardHolderZip optional zipType Simple Type

Zip or postal code; see the associated Type pattern for restrictions.

Note: Canadian postal codes should be sent in the format "A0A0A0".

CardHolderPhone optional phoneType Simple Type

Phone number; see the associated Type pattern for restrictions.

CardHolderEmail optional emailType Simple Type

Email address

CardHolderLanguage optional languageIndicatorType Simple Type

CardHolder preferred language.

Note:This field is required for Canadian merchants.

Amt amtTypeGlobal Simple Type

The cash amount paid by the customer; this is the sale total and includes all other "Info" amounts provided as part of this request.

GratuityAmtInfo optional amtTypeGlobal Simple Type

Gratuity amount information; this defines the portion of the total amount provided as part of this request that was specifically for gratuity. This is informational only and will not alter the amount processed as part of the transaction.

ShippingAmtInfo optional amtTypeGlobal Simple Type

Shipping amount information; this defines the portion of the total amount provided as part of this request that was specifically for shipping. This is informational only and will not alter the amount processed as part of the transaction.

TaxAmtInfo optional amtTypeGlobal Simple Type

Tax amount information; this defines the portion of the total amount provided as part of this request that was specifically for tax. This is informational only and will not alter the amount processed as part of the transaction.

AdditionalTxnFields optional AdditionalTxnFieldsType Complex Type

A common group of optional fields that are supported in several different transaction types for Merchant use.

All
Description optional descriptionType Simple Type

Free-form description field. This must not contain sensitive information.

InvoiceNbr optional Restriction of xs:string

Used to log the invoice number on transactions that are not eCommerce.

CustomerID optional customerIDType Simple Type

Used to log Merchant specific customer identification.

Note: For GETI check transactions, this is sent in the CUSTOM3 field.

Source
<xs:element name="Block1" type="CashSaleReqBlock1Type" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Contains a series of required and optional elements</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
See Also
PosCashSaleReqType Complex Type | PosGateway Schema
