Block1 Element

Description

Contains a series of required and optional elements

Note: TokenValue and TrackData are mutually exclusive, but it is required that one of these elements be provided. PinBlock can either be sent as part of the request or it can be associated with a token but it must be provided as well.

Namespace

http://Hps.Exchange.PosGateway

Type

DebitAuthReqBlock1Type Complex Type

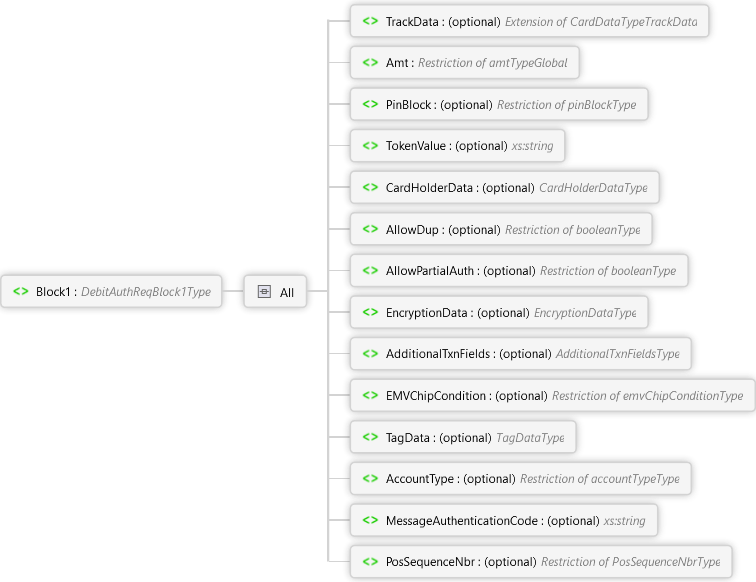

Diagram

Overview

Block1 DebitAuthReqBlock1Type Complex Type

Contains a series of required and optional elements

All

TrackData optional CardDataTypeTrackData Complex Type

Track data is the full magnetic stripe data.

Note: Only track 2 data is supported for debit transactions.

method optional CardDataTypeTrackDataMethod Simple Type

Indicates the method by which the track data was obtained; see the associated Type enumerations for specific values supported

Note: If not provided, the method is assumed to be a typical card swipe.

Amt amtTypeGlobal Simple Type

The amount requested for authorization; this includes all other "Info" amounts provided as part of this request.

PinBlock optional pinBlockType Simple Type

PIN block generated from the encrypted cardholder PIN and key serial number (KSN); see the guide for the specific PIN pad device being used to determine how to obtain the data elements required to create a PIN block.

Note: Portico requires the order of the data to be encrypted PIN followed by the KSN. If the encrypted PIN was 11111111 and the KSN was 22222222, the PIN block would have to be 1111111122222222 when sent to the gateway.

TokenValue optional xs:string

Token used to replace payment method data (track data and optionally PIN block).

Note: Multi-use tokens are not supported on debit transactions. This is currently only used for single-use tokens. Single-use tokens are provided by the SecureSubmit product and are primarily used in eCommerce situations.

CardHolderData optional CardHolderDataType Complex Type

Card holder data

All

CardHolderFirstName optional firstNameType Simple Type

First name

CardHolderLastName optional lastNameType Simple Type

Last name

CardHolderAddr optional addrType Simple Type

Address

CardHolderCity optional cityType Simple Type

City

CardHolderState optional stateType Simple Type

State

CardHolderZip optional zipType Simple Type

Zip or postal code; see the associated Type pattern for restrictions.

Note: Canadian postal codes should be sent in the format "A0A0A0".

CardHolderPhone optional phoneType Simple Type

Phone number; see the associated Type pattern for restrictions.

CardHolderEmail optional emailType Simple Type

Email address

CardHolderLanguage optional languageIndicatorType Simple Type

CardHolder preferred language.

Note:This field is required for Canadian merchants.

AllowDup optional booleanType Simple Type

This is important in cases where the client processes a large number of similar transactions in a very short period of time; sending "Y" will skip duplicate checking on this transaction.

AllowPartialAuth optional booleanType Simple Type

Indicates whether or not a partial authorization is supported by terminal; the default is N.

EncryptionData optional EncryptionDataType Complex Type

If the supplied card data was encrypted, this must be supplied.

All

DataFormat optional encryptedDataFormatType Simple Type

EncryptionDataFormat is an optional field to be used for encryption Version "05" to define the encryption encoding format

EncryptionDataFormat 1 Denotes the CardData sent to PORTICO is Binary

EncryptionDataFormat 2 Denotes the CardData sent to PORTICO is ASCII

Version encryptionVersionType Simple Type

The encryption version used on the supplied data.

For PAN encryption, use version "02" or "04" for Heartland E3 encryption. This requires the client to parse the E3 MSR output. The encrypted PAN is passed in the card data element as the manual entry card number. The KTB must be provided as part of the encryption data. If sending an encrypted CVV2, use version "04" which expects the PAN and CVV2 to be encrypted.

For PAN encryption, use version "05" for TDES DUKPT encryption with and without CVV encryption. This requires the client to parse the output. The encrypted PAN is passed in the card data element as the manual entry card number. The KSN must be provided as part of the encryption data.

For track encryption, use version "01", "02", or "04" for Heartland E3 encryption. Version "01" will not require parsing and it will not require additional fields in the encryption data, but the full E3 MSR output must be passed in the card data element as track data. Version "02" and "04" requires the client to parse the E3 MSR output. The KTB must be provided as part of the encryption data. In addition, the client must parse the data specific to either encrypted track 1 or track 2 and provide this in the card data element as track data as well as supply the track number as EncryptedTrackNumber.

For track encryption, use either version "03" for AES encryption with DUKPT, or "05" for TDES encryption with DUKPT. The "03" option supports the IdTECH card readers. The "05" option will work with any device that supports TDES with DUKPT data encryption per AINSI 9.24-1. Both options require the client to parse reader output. The KSN must be provided as part of the encryption data. In addition, the client must parse the data specific to either encrypted track 1 or track 2 and provide this in the card data element as track data as well as supply the track number as EncryptedTrackNumber.

For track encryption "05" is used for TDES encryption with DUKPT. The "05" option will work with any device that supports TDES with DUKPT data encryption per ANSI 9.24-1. Both options require the client to parse reader output. The KSN must be provided as part of the encryption data. In addition, the client must parse the data specific to either encrypted track 1 or track 2 and provide this in the card data element as track data, as well as supply the track number as EncryptedTrackNumber.

EncryptedTrackNumber optional encryptedTrackNumberType Simple Type

Required for encryption version "02","03","04" and "05"; indicates which track is being supplied encrypted (i.e. "1" or "2").

KTB optional encryptionKTBType Simple Type

Required for encryption version "02" or "04"; the Key Transmission Block (KTB) used at the point of sale.

KSN optional encryptionKSNType Simple Type

Required for encryption version "03" and "05"; the Key Serial Number (KSN) used at the point of sale.

AdditionalTxnFields optional AdditionalTxnFieldsType Complex Type

A common group of optional fields that are supported in several different transaction types for Merchant use.

All

Description optional descriptionType Simple Type

Free-form description field. This must not contain sensitive information.

InvoiceNbr optional Restriction of xs:string

Used to log the invoice number on transactions that are not eCommerce.

CustomerID optional customerIDType Simple Type

Used to log Merchant specific customer identification.

Note: For GETI check transactions, this is sent in the CUSTOM3 field.

EMVChipCondition optional emvChipConditionType Simple Type

This must be provided when the POS was not able to successfully communicate to the chip card and was required to fall back to a magnetic stripe read on an EMV capable terminal.

The values can indicate multiple factors:

The EMV chip read failed
Did the previous attempt fail

See enumerations for specific values supported

TagData optional TagDataType Complex Type

EMV or Non-EMV tag data in TLV format

All

TagValues optional Extension of xs:string

This field holds the tag data values.

source required Restriction of xs:string

This field specifies the source of the tag data value. It can be either chip or msd.

AccountType optional accountTypeType Simple Type

Indicates the type of account provided; see the associated Type enumerations for specific values supported.

MessageAuthenticationCode optional xs:string

A block of encrypted data to be sent from the POS on every contact Interac sale and return request. Required for Canadian merchants processing debit reversals.

PosSequenceNbr optional PosSequenceNbrType Simple Type

POS sequence number for Canadian Debit transactions.
