CardOnFileData Element

Description

The Card on File data received in the request.

Namespace

http://Hps.Exchange.PosGateway

Type

CardOnFileDataType Complex Type

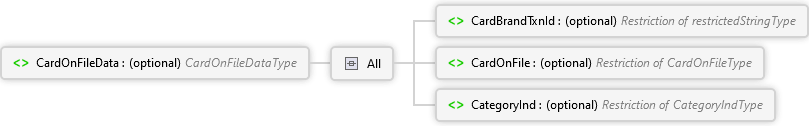

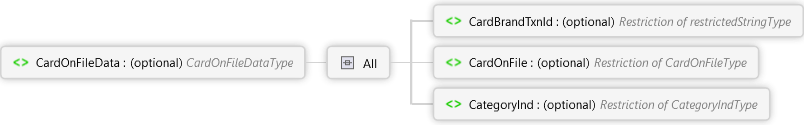

Diagram

Overview

CardOnFileData optional CardOnFileDataType Complex Type

The Card on File data received in the request.

All

CardBrandTxnId optional restrictedStringType Simple Type

Network Transaction Identifier

CardOnFile optional CardOnFileType Simple Type

Card On File Indicator

Valid values include:

'C' - Cardholder initiated transaction
'M' - Merchant initiated transaction

CategoryInd optional CategoryIndType Simple Type

Mastercard CIT/MIT indicator subcategory

Valid values include:

01 - Unscheduled Credential-on-file
02 - Standing Order (variable amount and fixed frequency)
03 - Subscription (fixed amount and frequency)
06 - Related/Delayed Charge
07 - No Show Charge
08 - Resubmission

Note: Future use for GSAP-AP merchants

Source

<xs:element name="CardOnFileData" type="CardOnFileDataType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">The Card on File data received in the request.</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
