CheckDataInfo Element

Description

A collection of check transaction related fields

Namespace

http://Hps.Exchange.PosGateway

Type

CheckDataInfoType Complex Type

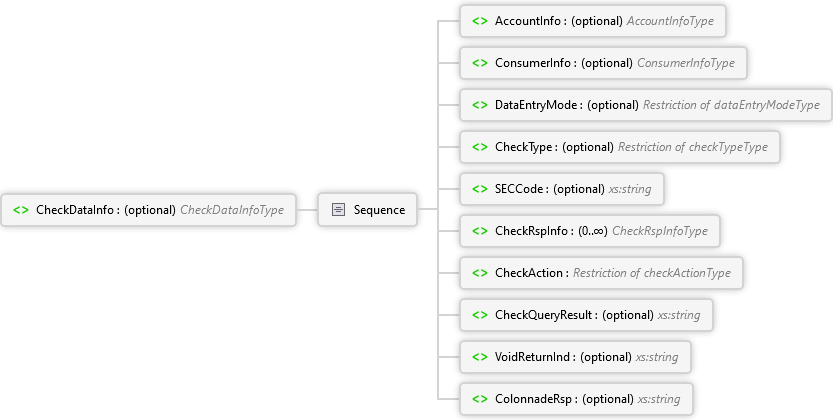

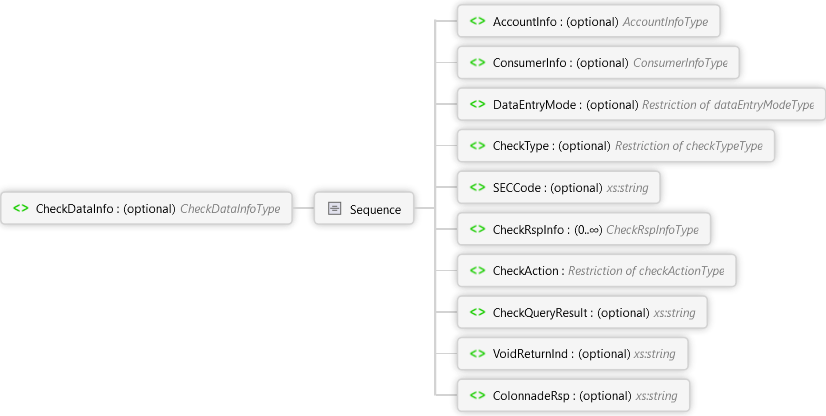

Diagram

Overview

CheckDataInfo optional CheckDataInfoType Complex Type

A collection of check transaction related fields

Sequence

AccountInfo optional AccountInfoType Complex Type

Account information

All

RoutingNumber optional xs:string

Check routing number; manually entered or parsed from MICR data.

AccountNumber optional Restriction of xs:string

Check account number; manually entered or parsed from MICR data.

CheckNumber optional xs:string

The physical check number; manually entered or parsed from MICR data.

MICRData optional Restriction of xs:string

Magnetic ink character recognition (MICR) data obtained from a check reader.

AccountType optional accountTypeType Simple Type

Indicates the type of account provided; see the associated Type enumerations for specific values supported.

Note: If processing with Colonnade, AccountType must be specified.

ConsumerInfo optional ConsumerInfoType Complex Type

Consumer information

All

FirstName optional xs:string

Consumer first name

LastName optional xs:string

Consumer last name

CheckName optional xs:string

Business name on check.

Note: If processing with Colonnade, this field is required.

Note: This sets the COMPANY_NAME sent to GETI.

Address1 optional xs:string

Consumer address line 1

Address2 optional xs:string

Consumer address line 2

City optional xs:string

Consumer city

State optional xs:string

Consumer state

Zip optional xs:string

Consumer zip code

PhoneNumber optional xs:string

Consumer phone number

EmailAddress optional xs:string

Consumer email address

Note: This was for Transmodus only and is no longer used.

DLState optional xs:string

Consumer driver's license state

Note: This field may be required by GETI based on the terminal configuration.

DLNumber optional Restriction of xs:string

Consumer driver's license number

Note: This field may be required by GETI based on the terminal configuration.

CourtesyCard optional Restriction of xs:string

Consumer courtesy card number

IdentityInfo optional IdentityInfoType Complex Type

Consumer identity information

All

SSNL4 optional Restriction of xs:string

Last four digits of the consumer social security number

Note: This field may be required by GETI based on the terminal configuration.

DOBYear optional xs:string

Consumer year of birth

Note: This field may be required by GETI based on the terminal configuration.

DataEntryMode optional dataEntryModeType Simple Type

CheckType optional checkTypeType Simple Type

SECCode optional xs:string

CheckRspInfo 0..∞ CheckRspInfoType Complex Type

Additional data that may be provided by specific check processors

Sequence

Type optional xs:string

Indicates type of response information:

Error
Decline
Information
Warning
Approve
Unknown

Code optional xs:string

Check processor response code(s); overall single response code or detail response codes separated by a hyphen (-)

Message optional xs:string

Message description of the provided code

FieldNumber optional xs:string

Field number that is in error

FieldName optional xs:string

Field name that is in error

CheckAction checkActionType Simple Type

Source

<xs:element name="CheckDataInfo" type="CheckDataInfoType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">A collection of check transaction related fields</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
