VisaLineItemsType Complex Type

Namespace

http://Hps.Exchange.PosGateway

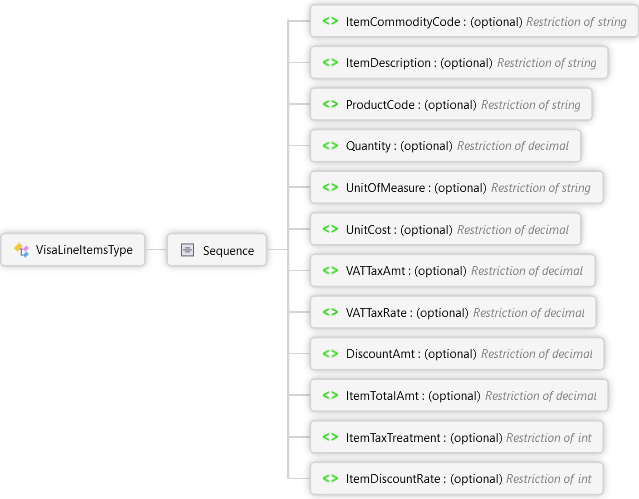

Diagram

Overview

VisaLineItemsType

Sequence

ItemCommodityCode optional Restriction of xs:string

The national standard description code of the good or service being supplied.

ItemDescription optional Restriction of xs:string

Description of the good or service being supplied.

ProductCode optional Restriction of xs:string

Identifies the product being purchased, for example, an inventory number or UPC code. A value other than spaces or zeros should be provided.

Quantity optional Restriction of xs:decimal

The number of units of the product being purchased. Must be numeric and greater than zero.

UnitOfMeasure optional Restriction of xs:string

Contains the code indicating the unit of measure (gallons, etc.).

UnitCost optional Restriction of xs:decimal

The cost per unit of measure.

VATTaxAmt optional Restriction of xs:decimal

Contains any Value Added Tax Amount or Other Sales Tax Amount.

Note: Not applicable for US merchants.

VATTaxRate optional Restriction of xs:decimal

The tax rate (percentage) of the Value Added Tax or Other Sales Tax.

Note: Not applicable for US merchants.

DiscountAmt optional Restriction of xs:decimal

Contains any discount on this line item.

ItemTotalAmt optional Restriction of xs:decimal

Contains the total amount of the line item; calculated as unit cost multiplied by quantity, less discount. The total amount must be greater than zero.

ItemTaxTreatment optional Restriction of xs:int

0 No discount applied

1 Tax was calculated before the discount was applied

2 Tax was calculated after the discount was applied

Used By

LineItemDetail Element

Source

<xs:complexType name="VisaLineItemsType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element name="ItemCommodityCode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The national standard description code of the good or service being supplied.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:pattern value="^[a-zA-Z0-9]*$" />
          <xs:maxLength value="12" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ItemDescription" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Description of the good or service being supplied.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:pattern value="^[a-zA-Z0-9 ]*$" />
          <xs:maxLength value="26" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ProductCode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Identifies the product being purchased, for example, an inventory number or UPC code. A value other than spaces or zeros should be provided.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:pattern value="^[a-zA-Z0-9]*$" />
          <xs:maxLength value="12" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Quantity" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The number of units of the product being purchased. Must be numeric and greater than zero.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="12" />
          <xs:fractionDigits value="4" />
          <xs:minExclusive value="0" />
          <xs:maxExclusive value="100000000" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="UnitOfMeasure" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Contains the code indicating the unit of measure (gallons, etc.).</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:pattern value="^[a-zA-Z0-9]*$" />
          <xs:maxLength value="12" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="UnitCost" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The cost per unit of measure.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="4" />
          <xs:totalDigits value="12" />
          <xs:minInclusive value="0" />
          <xs:maxExclusive value="100000000" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="VATTaxAmt" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Contains any Value Added Tax Amount or Other Sales Tax Amount.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Not applicable for US merchants.
            </p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="12" />
          <xs:fractionDigits value="2" />
          <xs:maxExclusive value="10000000000" />
          <xs:minInclusive value="0" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="VATTaxRate" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The tax rate (percentage) of the Value Added Tax or Other Sales Tax.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Not applicable for US merchants.
            </p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="4" />
          <xs:fractionDigits value="2" />
          <xs:maxExclusive value="100" />
          <xs:minInclusive value="0" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="DiscountAmt" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Contains any discount on this line item.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="12" />
          <xs:fractionDigits value="2" />
          <xs:minInclusive value="0" />
          <xs:maxExclusive value="10000000000" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ItemTotalAmt" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Contains the total amount of the line item; calculated as unit cost multiplied by quantity, less discount. The total amount must be greater than zero.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2" />
          <xs:totalDigits value="12" />
          <xs:minInclusive value="0" />
          <xs:maxExclusive value="10000000000" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ItemTaxTreatment" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">0 No discount applied</p>
          <p xmlns="http://Hps.Exchange.PosGateway">1 Tax was calculated before the discount was applied</p>
          <p xmlns="http://Hps.Exchange.PosGateway">2 Tax was calculated after the discount was applied</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="0" />
          <xs:maxInclusive value="2" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
