LineItemDetail Element

Namespace

http://Hps.Exchange.PosGateway

Type

VisaLineItemsType Complex Type

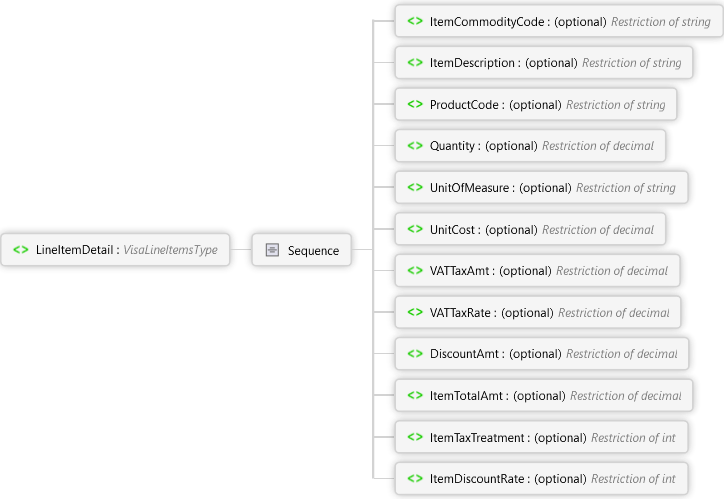

Diagram

Overview

LineItemDetail VisaLineItemsType Complex Type

Sequence

ItemCommodityCode optional Restriction of xs:string

The national standard description code of the good or service being supplied.

ItemDescription optional Restriction of xs:string

Description of the good or service being supplied.

ProductCode optional Restriction of xs:string

Identifies the product being purchased, for example, an inventory number or UPC code. A value other than spaces or zeros should be provided.

Quantity optional Restriction of xs:decimal

The number of units of the product being purchased. Must be numeric and greater than zero.

UnitOfMeasure optional Restriction of xs:string

Contains the code indicating the unit of measure (gallons, etc.).

UnitCost optional Restriction of xs:decimal

The cost per unit of measure.

VATTaxAmt optional Restriction of xs:decimal

Contains any Value Added Tax Amount or Other Sales Tax Amount.

Note: Not applicable for US merchants.

VATTaxRate optional Restriction of xs:decimal

The tax rate (percentage) of the Value Added Tax or Other Sales Tax.

Note: Not applicable for US merchants.

DiscountAmt optional Restriction of xs:decimal

Contains any discount on this line item.

ItemTotalAmt optional Restriction of xs:decimal

Contains the total amount of the line item; calculated as unit cost multiplied by quantity, less discount. The total amount must be greater than zero.

ItemTaxTreatment optional Restriction of xs:int

0 No discount applied

1 Tax was calculated before the discount was applied

2 Tax was calculated after the discount was applied

Source

<xs:element name="LineItemDetail" type="VisaLineItemsType" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
