GetAttachments Element

Description

GetAttachments is used to retrieve attachments (i.e. documents, images, etc.) associated with a particular transaction.

Namespace

http://Hps.Exchange.PosGateway

Type

PosGetAttachmentReqType Complex Type

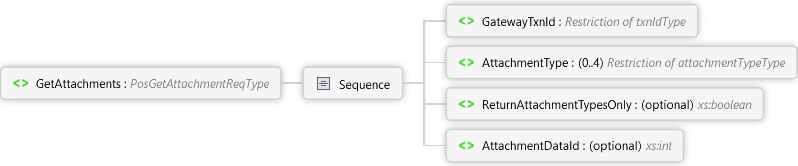

Diagram

Overview

GetAttachments PosGetAttachmentReqType Complex Type

GetAttachments is used to retrieve attachments (i.e. documents, images, etc.) associated with a particular transaction.

Sequence

GatewayTxnId txnIdType Simple Type

Gateway-generated transaction identifier returned in the response of the original transaction.

AttachmentType 0..4 attachmentTypeType Simple Type

Identifies the attachment types to be returned; see the associated Type enumerations for specific values supported.

Note: If this is not provided, 'all' is assumed.

ReturnAttachmentTypesOnly optional xs:boolean

Indicates that only the attachment types (no data) should be returned in the response; default is 'false'

AttachmentDataId optional xs:int

When specified, only the requested attachment will be returned

Source

<xs:element name="GetAttachments" type="PosGetAttachmentReqType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">GetAttachments is used to retrieve attachments (i.e. documents, images, etc.) associated with a particular transaction.</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
