ManageSettings Element

Description

Note: This service is used to manage certain Site or Device settings. Please refer to the Developer's Guide for further details.

Namespace

http://Hps.Exchange.PosGateway

Type

ManageSettingsReqType Complex Type

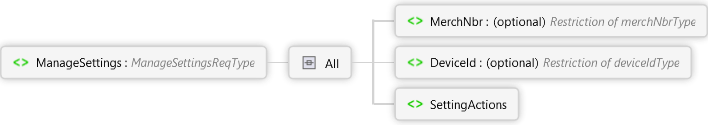

Diagram

Overview

ManageSettings ManageSettingsReqType Complex Type

Note: This service is used to manage certain Site or Device settings. Please refer to the Developer's Guide for further details.

All

MerchNbr optional merchNbrType Simple Type

The merchant number

DeviceId optional deviceIdType Simple Type

Used to specify the device id for which settings should be managed (must belong to the merchant)

SettingActions

The operations that can be performed on the associated settings

Choice

Set

Sequence 1..100

NameValuePair NameValuePairType Complex Type

The name and value of the setting to update

Query

Sequence 0..100

Name xs:string

The name of the setting to query

Source

<xs:element name="ManageSettings" type="ManageSettingsReqType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">
        <strong>Note:</strong> This service is used to manage certain Site or Device settings. Please refer to the Developer's Guide for further details.
                          </p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
