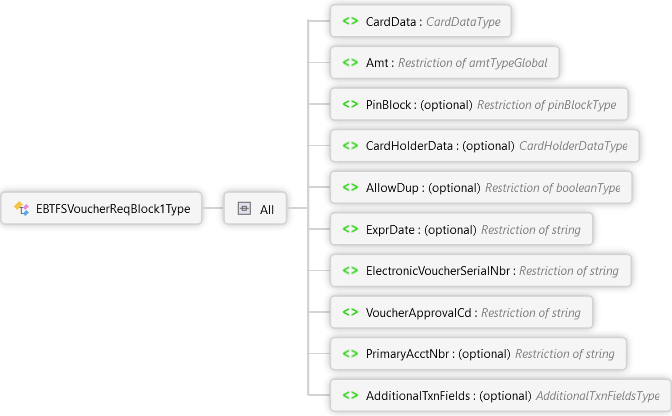

<xs:complexType name="EBTFSVoucherReqBlock1Type" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="CardData" type="CardDataType">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A common element used in several different transactions for supplying payment method information.</p>
          <p xmlns="http://Hps.Exchange.PosGateway">This includes a choice of typical payment representations like track data, manually entered data, and token information. It also includes options for specifying how the supplied data has been encrypted or to request a multi-use token be supplied in the response.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Swipe is not allowed for a voucher purchase.
            </p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Multi-use and single-use tokens are not supported for EBT.
            </p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> For EBTVoucherPurchase transactions, a null expiration date is represented by setting the ExpMonth to 1 and the ExpYear to 9999 in the CardData.ManualEntry node.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Amt" type="amtTypeGlobal">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">The amount requested for authorization; this includes all other "Info" amounts provided as part of this request.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PinBlock" type="pinBlockType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">PIN block generated from the encrypted cardholder PIN and key serial number (KSN); see the guide for the specific PIN pad device being used to determine how to obtain the data elements required to create a PIN block.</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong> Portico requires the order of the data to be encrypted PIN followed by the KSN. If the encrypted PIN was 11111111 and the KSN was 22222222, the PIN block would have to be 1111111122222222 when sent to the gateway.
            </p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong>This field has been deprecated.  EBTVoucherPurchase does not support PINBlock verification and is ignored when sent.
            </p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CardHolderData" type="CardHolderDataType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Card holder data</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AllowDup" type="booleanType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This is important in cases where the client processes a large number of similar transactions in a very short period of time; sending "Y" will skip duplicate checking on this transaction.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExprDate" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Voucher expiration date; format is MMYY</p>
          <p xmlns="http://Hps.Exchange.PosGateway" />
          <p xmlns="http://Hps.Exchange.PosGateway">
            <strong>Note:</strong>This field has been deprecated.  The CardData.ManualEntry field must be used for passing payment method details.
            </p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="4" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ElectronicVoucherSerialNbr">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Serial number from the EBT voice authorization system.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="15" />
          <xs:pattern value="^[0-9A-Za-z]*" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="VoucherApprovalCd">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Approval code provided by the EBT voice authorization system</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="6" />
          <xs:pattern value="^[0-9A-Za-z]*" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="PrimaryAcctNbr" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">This field has been deprecated. The CardData field must be used for passing payment method details.</p>
        </xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="76" />
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="AdditionalTxnFields" type="AdditionalTxnFieldsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">A common group of optional fields that are supported in several different transaction types for Merchant use.</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
