PosGateway Schema
Table10 Element
PosGateway Schema > PDLTableDataRspType Complex Type : Table10 Element
Description

Table-10 data

Namespace http://Hps.Exchange.PosGateway
Type
PDLTable10RspType Complex Type

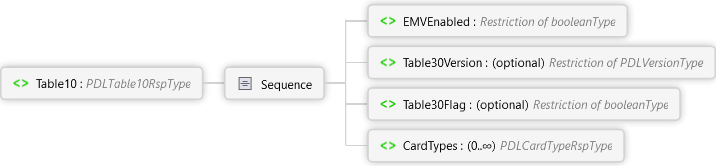

Diagram
CardTypes Element Table30Flag Element Table30Version Element EMVEnabled Element Sequence Table10 Element
Overview
Table10 PDLTable10RspType Complex Type

Table-10 data

Sequence
EMVEnabled booleanType Simple Type

Indicates whether EMV is enabled for the POS

Table30Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 30 available to the POS

Table30Flag optional booleanType Simple Type

Indicates if a Table-ID 30 download is required

CardTypes 0..∞ PDLCardTypeRspType Complex Type

Card type data

Sequence
CardType PDLCardTypeType Simple Type

Card type

Table40Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 40 available to the POS

Table40Flag optional booleanType Simple Type

Indicates if a Table-ID 40 download is required

Table50Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 50 available to the POS

Table50Flag optional booleanType Simple Type

Indicates if a Table-ID 50 download is required

Table60Version optional PDLVersionType Simple Type

Indicates the current version of Table-ID 60 available to the POS

Table60Flag optional booleanType Simple Type

Indicates if a Table-ID 60 download is required

Source
<xs:element name="Table10" type="PDLTable10RspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Table-10 data</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
See Also
PDLTableDataRspType Complex Type | PosGateway Schema
