PosParameterDownloadRspType Complex Type

Namespace

http://Hps.Exchange.PosGateway

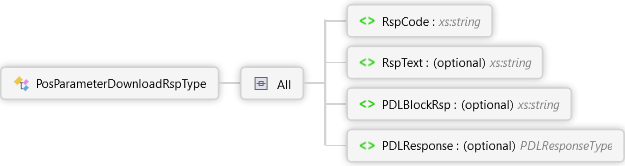

Diagram

Overview

PosParameterDownloadRspType

All

RspCode xs:string

Response code returned by the Parameter Data Download system

RspText optional xs:string

Response text associated with RspCode

PDLBlockRsp optional xs:string

Pass-through PDL block response; full definition of this field must be obtained from the Parameter Data Download system

PDLResponse optional PDLResponseType Complex Type

Abstracted PDL response; full definition of these fields must be obtained from the Parameter Data Download system

Sequence

Version optional PDLVersionType Simple Type

Parameter or table version

BlockSequence PDLBlockSequenceType Simple Type

Sequence number for each block

TableID PDLTableIDType Simple Type

Table id

CardType optional PDLCardTypeType Simple Type

Card type

EndOfTableFlag optional booleanType Simple Type

End of table flag

ConfirmationFlag optional PDLConfirmationFlagType Simple Type

Confirmation flag

TableData optional PDLTableDataRspType Complex Type

Table data

Choice

Table10 PDLTable10RspType Complex Type

Table-10 data

TableBlock xs:string

Table 30-60 table data block

Used By

ParameterDownload Element

Source

<xs:complexType name="PosParameterDownloadRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:all>
    <xs:element name="RspCode" type="xs:string">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Response code returned by the Parameter Data Download system</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RspText" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Response text associated with RspCode</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PDLBlockRsp" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Pass-through PDL block response; full definition of this field must be obtained from the Parameter Data Download system</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PDLResponse" type="PDLResponseType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <p xmlns="http://Hps.Exchange.PosGateway">Abstracted PDL response; full definition of these fields must be obtained from the Parameter Data Download system</p>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:all>
</xs:complexType>
