ParameterDownload Element

Namespace

Type

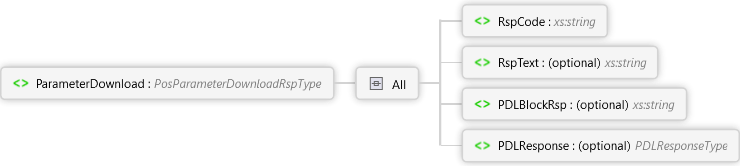

Diagram

Overview

All

RspCode xs:string

Response code returned by the Parameter Data Download system

RspText optional xs:string

Response text associated with RspCode

PDLBlockRsp optional xs:string

Pass-through PDL block response; full definition of this field must be obtained from the Parameter Data Download system

Abstracted PDL response; full definition of these fields must be obtained from the Parameter Data Download system

Sequence

Parameter or table version

Sequence number for each block

Table id

Card type

End of table flag

Confirmation flag

Table data

Choice

Table-10 data

TableBlock xs:string

Table 30-60 table data block

Source

<xs:element name="ParameterDownload" type="PosParameterDownloadRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
