CheckVoid Element

Namespace

Type

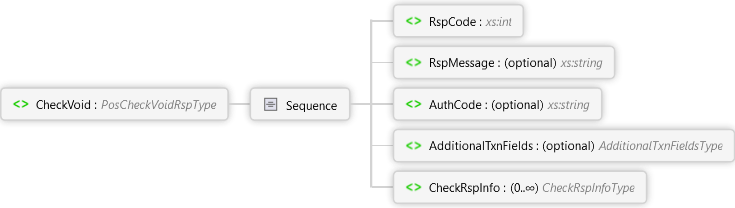

Diagram

Overview

Sequence

RspCode xs:int

Response (result) code indicating the overall success of the transaction; '0' indicates success while non-zero indicates a failure.

RspMessage optional xs:string

Response (result) text returned by the check processor; additional error messages may be separated by a hyphen (-)

AuthCode optional xs:string

If authorized, authorization code returned by the check processor

A common group of optional fields that are supported in several different transaction types for Merchant use

All

Free-form description field. This must not contain sensitive information.

InvoiceNbr optional Restriction of xs:string

Used to log the invoice number on transactions that are not eCommerce.

Used to log Merchant specific customer identification.

Note: For GETI check transactions, this is sent in the CUSTOM3 field.

Additional response information that can vary by check processor

Sequence

Type optional xs:string

Indicates type of response information:

Code optional xs:string

Check processor response code(s); overall single response code or detail response codes separated by a hyphen (-)

Message optional xs:string

Message description of the provided code

FieldNumber optional xs:string

Field number that is in error

FieldName optional xs:string

Field name that is in error

Source

<xs:element name="CheckVoid" type="PosCheckVoidRspType" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
